Largest Wheel Fitment Database

ALL CAR BRANDS WHEEL SPECS

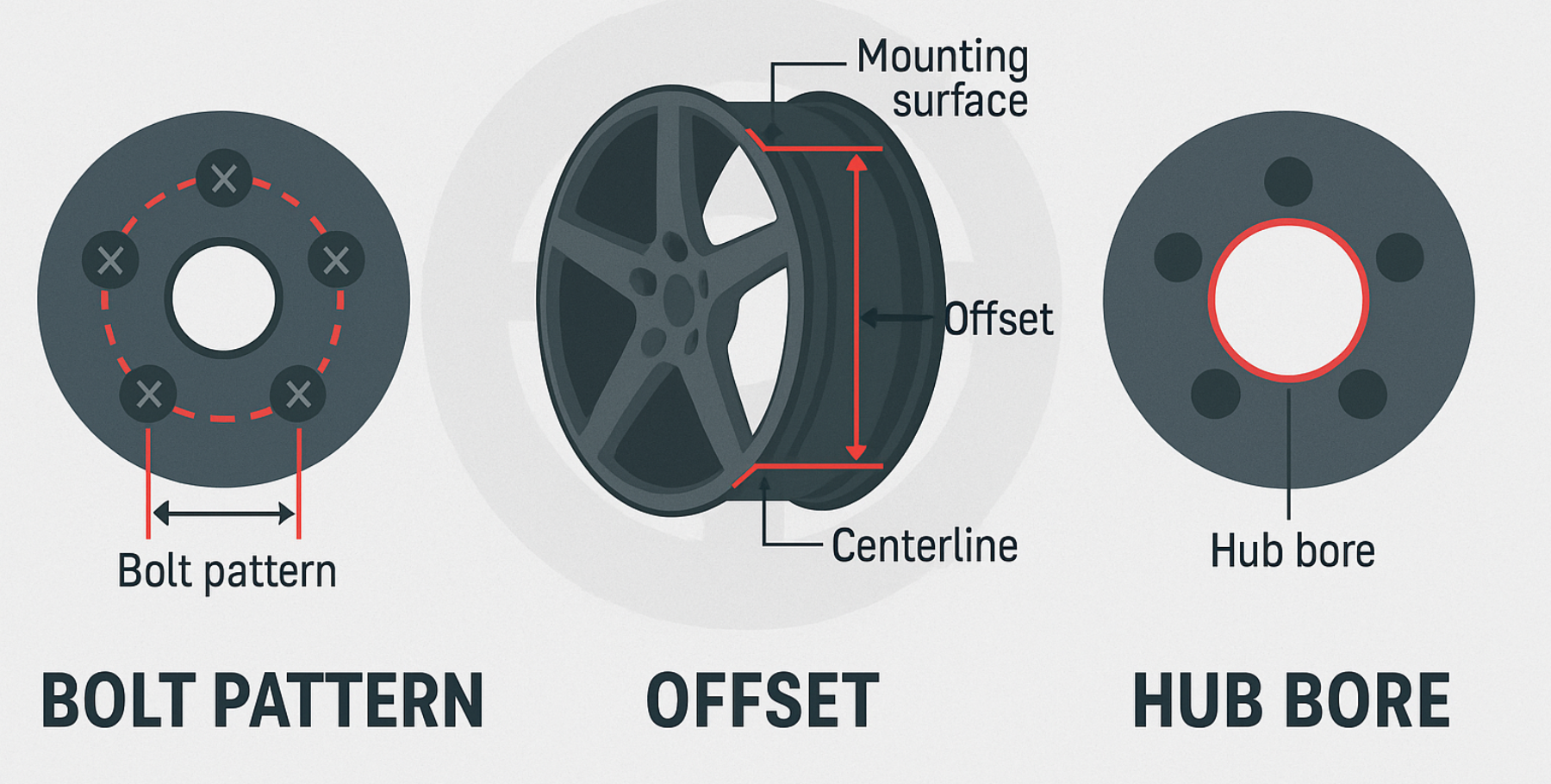

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
145, 146	94-00	58.1	4×98	40	B 12×1,25
147	00-10	58.1	5×98	40	B 12×1,25
155	92-98	58.1	4×98	40	B 12×1,25
156	96-07	58.1	5×98	40	B 12×1,25
159	05-12	65.1	5×110	42	B 14×1,50
164 (4-bolt)	87-98	58.1	4×98	40	B 12×1,25
164 (5-bolt)	87-98	58.1	5×98	40	B 12×1,25
166	99-07	58.1	5×108	42	B 12×1,25
33	83-95	58.1	4×98	40	N 12×1,25
4C, 4C Spider	13-17	58.1	5×98	38 front, 44 rear	B 12×1,25
75 (4-bolt)	85-92	58.6	4×98	45	N 12×1,25
75 (5-bolt)	85-92	58.6	5×98	45	N 12×1,25
90 (4-bolt)	84-87	58.6	4×98	45	N 12×1,25
90 (5-bolt)	84-87	58.6	5×98	45	N 12×1,25
Alfasud	71-89	58.1	4×98	45	N 12×1,25
Alfetta	72-87	58.6	4×98	45	N 12×1,25
Brera, Spider	05-10	65.1	5×110	42	B 14×1,50
Giulia	16-17	63.4	5×110	39	N 14×1,50
Giulietta	10-16	65.1	5×110	42	B 12×1,25
GT Coupé	03-10	58.1	5×98	35	B 12×1,25
GTV, Spider	95-06	58.1	5×98	35	B 12×1,25
MiTo	08-16	58.1	4×98	40	B 12×1,25
Montreal	70-77	63.4	4×108	23	B 12×1,50
Sprint	76-89	58.1	4×98	45	N 12×1,25
Stelvio SUV	17-19	65.1	5×110	35	B 14×1,50

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
Javelin	67-74	70.3	5×114,3	12	N 1/2" (UNF 20)

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
DB11	16-16	68.1	5×114,3	35	B 14×2,00
DB7 / Vantage	94-04	74.1	5×120,65	32	N 1/2"
DB9	04-12	68.1	5×114,3	50	B 14×2,00
DBS (V12)	07-12	68.1	5×114,3	42	B 14×2,00
Lagonda	76-90	74.1	5×120,65	30	N 1/2"
Rapide	10-16	68.1	5×128	42	B 14×2,00
Vanquish	01-07	63.4	5×108	45	N 12×1,50
Vanquish	12-16	75.1	5×128	42	B 14×2,00
Vantage (V8, V12)	05-16	68.1	5×114,3	50	B 14×2,00
Virage	88-96	74.1	5×120,65	30	N 1/2"
Virage	11-12	68.1	5×114,3	42	B 14×2,00

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
100 C1	68-76	57.1	4×108	40	B 14×1,50
100 C2	76-82	57.1	4×108	40	B 14×1,50
100 C3	82-91	57.1	5×112	42	B 14×1,50
100 C4	91-94	57.1	5×112	42	B 14×1,50
200	79-91	57.1	5×112	45	B 14×1,50
80 B2	78-86	57.1	4×100	45	B 12×1,50
80 B3-B4	86-96	57.1	4×108	45	B 14×1,50
90	86-94	57.1	4×108	45	B 14×1,50
90 Quattro	86-91	57.1	4×108	45	B 14×1,50
A1	10-16	57.1	5×100	34	B 14×1,50
A2	00-05	57.1	5×100	34	B 14×1,50
A2 1,2 TDI	01-05	57.1	4×100	45	B 12×1,50
A3	96-03	57.1	5×100	38	B 14×1,50
A3	03-13	57.1	5×112	50	B 14×1,50
A3	13-17	57.1	5×112	48	B 14×1,50
A4 B5	95-01	57.1	5×112	45	B 14×1,50
A4 B6-B7	01-08	57.1	5×112	45	B 14×1,50
A4 B8-B9	08-16	66.6	5×112	45	B 14×1,50
A5	07-16	66.6	5×112	29	B 14×1,50
A6 C4	94-97	57.1	5×112	42	B 14×1,50
A6 C5	97-04	57.1	5×112	42	B 14×1,50
A6 C6	04-11	57.1	5×112	42	B 14×1,50
A6 C7	11-16	66.6	5×112	42	B 14×1,50
A7 (Gen 1)	10-17	66.6	5×112	32	B 14×1,50
A7 (Gen 2)	18-19	66.6	5×112	30	B 14×1,50
A8 D2	94-02	57.1	5×112	42	B 14×1,50
A8 D3	02-09	57.1	5×112	42	B 14×1,50
A8 D4	10-16	66.6	5×112	42	B 14×1,50
Coupé with small brakes	80-88	57.1	4×100	45	B 14×1,50
Coupé with large brakes	80-88	57.1	4×108	45	B 14×1,50
Coupé Quattro	80-88	57.1	4×108	45	B 14×1,50
E-tron Quattro	19-22	66.6	5×112	38	B 14×1,50
E-tron GT Quattro	20-21	71.6	5×130	54	B 14×1,50
Q2	16-18	57.1	5×112	48	B 14×1,50
Q3	12-16	57.1	5×112	43	B 14×1,50
Q5	09-19	66.5	5×112	39	B 14×1,50
Q7	06-14	71.6	5×130	55	B 14×1,50
Q7	15-19	66.5	5×112	30	B 14×1,50
Quattro/Ur-Quattro	80-91	57.1	5×112	25	B 14×1,50
R8	06-15	57.1	5×112	42	B 14×1,50
R8	16-16	57.1	5×112	42	B 14×1,50
RS2	94-95	71.6	5×130	45	B 14×1,50
RS3	11-18	57.1	5×112	50	B 14×1,50
RS4	00-01	57.1	5×112	45	B 14×1,50
RS4	06-08	57.1	5×112	45	B 14×1,50
RS4	12-15	66.6	5×112	45	B 14×1,50
RS5	10-16	66.6	5×112	29	B 14×1,50
RS6	02-04	57.1	5×112	29	B 14×1,50
RS6	08-10	57.1	5×112	29	B 14×1,50
RS6	13-16	66.6	5×112	25	B 14×1,50
S2	91-96	57.1	5×112	40	B 14×1,50
S3	99-03	57.1	5×100	31	B 14×1,50
S3	06-12	57.1	5×112	50	B 14×1,50
S3	13-16	57.1	5×112	50	B 14×1,50
S4	91-94	57.1	5×112	45	B 14×1,50
S4	97-02	57.1	5×112	45	B 14×1,50
S4	03-05	57.1	5×112	45	B 14×1,50
S4	05-08	57.1	5×112	45	B 14×1,50
S4	09-16	66.6	5×112	45	B 14×1,50
S5	07-17	66.6	5×112	29	B 14×1,50
S6	94-97	57.1	5×112	42	B 14×1,50
S6	99-03	57.1	5×112	42	B 14×1,50
S6	06-11	57.1	5×112	42	B 14×1,50
S6	12-16	66.6	5×112	42	B 14×1,50
S7	12-16	66.6	5×112	32	B 14×1,50
S8	96-02	57.1	5×112	42	B 14×1,50
S8	06-09	57.1	5×112	42	B 14×1,50
S8	12-16	66.6	5×112	42	B 14×1,50
TT	99-06	57.1	5×100	31	B 14×1,50
TT	06-14	57.1	5×112	50	B 14×1,50
TT	14-16	57.1	5×112	50	B 14×1,50
V8	88-94	57.1	5×112	40	B 14×1,50

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
Arnage	98-09	72.6	5×120	55	B 14×1,50
Azure (Gen 1)	95-03	72.6	5×120	55	B 14×1,50
Azure (Gen 2)	06-09	72.6	5×120	55	B 14×1,50
Brooklands (Gen 2)	08-11	114.5	5×160	60	B 1/2"
Continental Flying Spur (Gen 1-2)	05-16	57.1	5×112	43	B 14×1,50
Continental GT (Gen 1-2)	03-16	57.1	5×112	43	B 14×1,50
Continental GTC (Gen 1-2)	06-16	57.1	5×112	43	B 14×1,50
Continental R, T	91-03	57.1	5×112	43	B 14×1,50
Mulsanne	10-16	57.1	5×112	42	B 14×1,50

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
1600-2002	69-75	57.1	4×100	32	B 12×1,50
1-series E87/E81/E82/E88	04-13	72.6	5×120	42	B 12×1,50
1-series F20/F21	12-18	72.6	5×120	42	B 12×1,50
2002 Turbo	73-74	57.1	4×100	18	B 12×1,50
2500/2800/3.0S E3/E9	68-77	72.6	5×120	22	B 12×1,50
2-series Coupé/Cab F22	14-16	72.6	5×120	42	B 14×1,50
2-series Tourer F45/F46	14-16	66.6	5×112	52	B 14×1,50
3-series E21	75-82	57.1	4×100	29	B 12×1,50
3-series E30	82-90	57.1	4×100	35	B 12×1,50
3-series E36	91-98	72.6	5×120	42	B 12×1,50
3-series E46	98-05	72.6	5×120	42	B 12×1,50
3-series E90-E93	05-13	72.6	5×120	34	B 12×1,50
3-series F30/F31	12-16	72.6	5×120	34	B 14×1,50
4-serie F32/F33/F36	14-18	72.6	5×120	34	B 14×1,50
5-series E12	72-81	72.6	5×120	22	B 12×1,50
5-series E28	82-87	72.6	5×120	22	B 12×1,50
5-series E34	88-95	72.6	5×120	20	B 12×1,50
5-series E39	96-03	74.1	5×120	25	B 12×1,50
5-series E60/E61	04-09	72.6	5×120	25	B 12×1,50
5-series E60/E61 xDrive	04-09	72.6	5×120	42	B 12×1,50
5-series F10/F11/F07	10-17	72.6	5×120	25	B 14×1,25
5-series G30/G31	17-18	66.5	5×112	26	B 14×1,25
6-series E24	76-90	72.6	5×120	22	B 12×1,50
6-series E63/E64	04-10	72.6	5×120	17	B 12×1,50
6-series F06/F12/F13/F14	11-16	72.6	5×120	32	B 14×1,50
7-series E23	77-86	72.6	5×120	22	B 12×1,50
7-series E32	86-94	72.6	5×120	20	B 12×1,50
7-series E38	94-01	72.6	5×120	20	B 12×1,50
7-series E65/E66	02-08	72.6	5×120	20	B 12×1,50
7-series F01/F02	09-15	72.6	5×120	20	B 12×1,50
7-series G11/G12	16-18	66.5	5×112	30 front 40 rear	B 14×1,25
8-series	90-99	72.6	5×120	20	B 12×1,50
i3	14-17	66.7	5×112	43 (The car has thin wheels!)	N 14×1,25
i8	14-17	66.7	5×112	39	B 14×1,25
X1 E84	09-15	72.6	5×120	32	B 12×1,50
X1 F48	16-19	66.6	5×112	48	B 14×1,25
X2 F30	18-20	66.6	5×112	52	B 14×1,25
X3 E83	03-10	72.6	5×120	46	B 14×1,50
X3 F25	11-17	72.6	5×120	46	B 14×1,50
X3 G01	17-20	66.6	5×112	28	B 14×1,50
X4 F26	14-18	72.6	5×120	42	B 14×1,50
X5 E53	00-06	72.6	5×120	40	B 14×1,50
X5 E70	07-13	74.1	5×120	46	B 14×1,25
X5 E70 xDrive	07-13	74.1	5×120	46	B 14×1,50
X5 F15	14-16	74.1	5×120	46	B 14×1,25
X6 E71	09-14	74.1	5×120	46	B 14×1,25
X6 F16	15-16	74.1	5×120	46	B 14×1,25
Z3	95-02	72.6	5×120	42	B 12×1,50
Z4 E85/E86	02-08	72.6	5×120	47	B 12×1,50
Z4 E89	09-16	72.6	5×120	30 front, 40 rear	B 12×1,50
Z8 E52	00-03	72.6	5×120	20	B 12×1,50

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
Cascada	13-16	70.3	5×115	41	N 12×1,50
Century (Gen 5)	82-90	57.1	5×100	42	N 12×1,50
Century (Gen 5-6)	90-05	70.3	5×115	45	N 12×1,50
Electra (Gen 3-5)	64-84	78.3	5×127	12	N 1/2"-RH
Electra (Gen 6)	85-90	70.3	5×115	45	N 12×1,50
Enclave	08-17	74.5	6×132	50	N 14×1,50
Encore	13-16	56.6	5×105	38	N 12×1,50
Full-size cars	64-87	78.3	5×127	12	N 1/2"-RH
LaCrosse (Gen 1)	05-09	70.3	5×115	45	N 12×1,50
LaCrosse (Gen 2)	10-16	67.1	5×120	45	N 14×1,50
LeSabre (Gen 3-5)	64-84	78.3	5×127	12	N 1/2"-RH
LeSabre (Gen 6-8)	86-05	70.3	5×115	45	N 12×1,50
Mid-size cars	64-87	70.3	5×120,65	5	N 12×1,50
Park Avenue (Gen 1-2)	91-05	70.3	5×115	45	N 12×1,50
Rainier	03-08	78.3	6×127	50	N 12×1,50
Reatta	88-91	70.3	5×115	45	N 12×1,50
Regal (Gen 1-2)	73-87	70.3	5×120,65	5	N 12×1,50
Regal (Gen 3-4)	88-04	70.3	5×115	45	N 12×1,50
Regal (Gen 5)	09-16	67.1	5×120	42	N 14×1,50
Rendezvous	02-07	70.3	5×115	45	N 12×1,50
Riviera (Gen 1-5)	63-78	78.3	5×127	12	N 1/2"-RH
Riviera (Gen 6)	79-85	70.3	5×120,65	45	N 12×1,50
Riviera (Gen 7-8)	86-99	70.3	5×115	45	N 12×1,50
Roadmaster (Gen 8)	91-96	78.3	5×127	12	N 12×1,50
Skylark	64-79	70.3	5×120,65	5	N 12×1,50
Skylark	80-98	57.1	5×100	42	N 12×1,50
Somerset	85-87	57.1	5×100	42	N 12×1,50
Terraza (5-bolt)	05-07	70.3	5×115	52	N 12×1,50
Terraza (6-bolt)	05-07	70.3	6×115	52	N 12×1,50
Verano (2.0 Turbo, 2.4i)	11-16	70.3	5×115	45	N 12×1,50
Wildcat	63-70	78.3	5×127	12	N 12×1,50

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
Allante	86-93	70.3	5×115	42	N 12×1,50
ATS	12-18	70.3	5×115	42	N 12×1,50
ATS-V	16-18	67.1	5×120,65	35	N 14×1,50
BLS	06-09	65.1	5×110	42	B 12×1,50
Brougham	87-92	70.3	5×115	50	N 12×1,50
Catera	97-01	65.1	5×110	42	B 12×1,50
Cimarron	82-88	57.1	5×100	45	N 12×1,50
CT6	16-18	67.1	5×120,65	32	N 14×1,50
CTS (Gen 1)	02-07	70.3	5×115	46	N 12×1,50
CTS (Gen 2)	08-13	67.1	5×120,65	50	N 12×1,50
CTS (Gen 3)	14-16	67.1	5×120,65	32	N 14×1,50
CTS-V (Gen 1)	04-07	70.3	6×115	41	N 12×1,50
CTS-V (Gen 2)	08-15	67.1	5×120,65	48	N 14×1,50
CTS-V (Gen 3)	15-18	67.1	5×120,65	24	N 14×1,50
DeVille	94-05	70.3	5×115	42	N 12×1,50
DTS	06-11	70.3	5×115	50	N 14×1,50
Eldorado (Gen 8)	79-85	70.3	5×120,65	5	N 12×1,50
Eldorado (Gen 9-10)	86-02	70.3	5×115	42	N 12×1,50
Escalade (Gen 1-3)	99-14	78.1	6×139,7	32	N 14×1,50
Escalade (Gen 4)	15-16	78.1	6×139,7	24	N 14×1,50
Fleetwood (FWD, gen 1)	85-92	70.3	5×115	47	N 12×1,50
Fleetwood (RWD, gen 2)	93-96	78.3	5×127	12	N 12×1,50
Seville SLS, STS	92-04	70.3	5×115	42	N 12×1,50
SRX (Gen 1)	04-09	70.3	6×115	50	N 12×1,50
SRX (Gen 2)	10-16	67.1	6×120,65	52	N 14×1,50
STS	04-12	71.6	5×115	42	N 14×1,50
STS-V	06-09	71.6	6×115	45	N 14×1,50
XLR	04-09	70.3	5×120,65	61	N 12×1,50
XT5	16-18	74.5	6×132	42	N 14×1,50
XTS	13-16	67.1	5×120,65	40	N 12×1,50

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
8-bolt	60-	116.6	8×165,1	12	N 14×1,50
All mid- & full-size RWD	55-88	70.3	5×120,65	8	N 7/16"-RH
Alero	98-05	70.3	5×115	46	N 12×1,50
Astro / Safari 5-bolt	85-03	78.3	5×127	8	N 1/2"-RH
Astro / Safari 6-bolt	03-05	78.3	6×139,7	30	N 14×1,50
Avalanche (Gen 1-2)	01-14	78.1	6×139,7	31	N 14×1,50
Avalanche 2500 (Gen 1)	01-06	116.6	8×165,1	12	N 14×1,50
Aveo	02-11	56.6	4×100	46	N 12×1,50
Aveo 4-bolt	11-17	56.6	4×100	39	N 12×1,50
Aveo 5-bolt	11-17	56.6	5×105	39	N 12×1,50
Bel Air (A body, B platform)	55-70	–	5×120,65	0	–
Beretta	87-97	57.1	5×100	44	N 12×1,50
Blazer S-10 2WD	82-05	70.3	5×120,65	10	N 12×1,50
Blazer S-10 4WD	82-05	70.3	5×120,65	46	N 12×1,50
Bravada	01-04	78.1	6×127	50	N 12×1,50
Camaro	67-82	–	5×120,65	2	–
Camaro	82-92	70.3	5×120,65	10	N 12×1,50
Camaro IROC-Z	85-92	70.3	5×120,65	22	N 12×1,50
Camaro	93-02	70.3	5×120,65	46	N 12×1,50
Camaro	09-17	67.1	5×120	36	N 14×1,50
Caprice (Gen 3)	76-90	–	5×120,65	2	–
Caprice (Gen 4)	90-98	78.3	5×127	8	N 12×1,50
Captiva	06-17	70.3	5×115	46	N 12×1,50
Cavalier	82-05	57.1	5×100	40	N 12×1,50
Celebrity	82-90	70.3	5×115	44	N 12×1,50
City Express / Nissan NV200	14-17	66.1	5×114,3	44	N 12×1,25
C/K 1500 5-bolt	67-87	78.1	5×127	8	N 1/2"-RH
C/K 1500 6-bolt	67-87	78.1	6×139,7	8	N 1/2"-RH
C/K 1500 / Silverado 5-bolt	88-98	78.1	5×127	12	N 14×1,50
C/K 1500 / Silverado 6-bolt	88-98	78.1	6×139,7	26	N 14×1,50
Cobalt 4-bolt	05-10	57.1	4×100	40	N 12×1,50
Cobalt SS Super Sport 5-bolt	05-10	65.1	5×110	40	N 12×1,50
Colorado (Gen 1)	04-12	99.5	6×139,7	33	N 12×1,50
Colorado (Gen 2)	12-17	66.9	6×120	18	N 14×1,50
Corsica	87-97	57.1	5×100	44	N 12×1,50
Corvette C4	84-89	70.3	5×120,65	32	N 12×1,50
Corvette C4	90-96	70.3	5×120,65	52	N 12×1,50
Corvette C5	97-03	70.3	5×120,65	56	N 12×1,50
Corvette C6	04-13	70.3	5×120,65	78	N 12×1,50
Corvette C6 Grand Sport / Z06	04-13	70.3	5×120,65	60	N 12×1,50
Corvette C7	13-17	70.3	5×120,65	77	N 12×1,50
Cruze (Gen 1)	09-16	56.6	5×105	39	N 12×1,50
Cruze 2.0 D (Gen 1)	09-16	70.3	5×115	40	N 12×1,50
El Camino (A-body)	64-81	70.3	5×120,65	8	N 7/16"-RH
El Camino (G-body)	82-87	70.3	5×120,65	8	N 12×1,50
Envoy / XL / XUV	02-09	78.1	6×127	50	N 12×1,50
Epica	06-11	56.6	4×114,3	44	N 12×1,50
Equinox (Gen 1)	04-09	70.3	5×115	42	N 12×1,50
Equinox (Gen 2)	10-17	66.6	5×120	42	N 14×1,50
Evanda	00-06	56.6	4×114,3	45	N 12×1,50
Express / Van 5-bolt	96-03	78.3	5×127	12	N 14×1,50
Express / Van 6-bolt	96-03	78.3	6×139,7	12	N 14×1,50
Express / Van 8-bolt	96-03	116.6	8×165,1	12	N 14×1,50
Express / Van 6-bolt	03-17	78.3	6×139,7	22	N 14×1,50
Express / Van 8-bolt	03-17	116.6	8×165,1	22	N 14×1,50
HHR	05-11	65.1	5×110	40	N 12×1,50
Impala SS Super Sport (Gen 7)	94-97	78.3	5×127	8	N 12×1,50
Impala (Gen 8-9)	99-13	70.3	5×115	44	N 12×1,50
Impala (Gen 10)	13-17	66.9	5×120	42	N 14×1,50
Kalos	02-11	56.6	4×100	45	N 12×1,50
Lacetti	02-11	56.6	4×114,3	44	N 12×1,50
Lumina (Gen 1-2)	89-01	70.3	5×115	42	N 12×1,50
Malibu (Gen 5)	97-04	70.3	5×115	42	N 12×1,50
Malibu (Gen 6-7)	04-12	65.1	5×110	40	N 12×1,50
Malibu (Gen 8)	12-17	67.1	5×120	40	N 14×1,50
Matiz (Gen 1-2)	98-09	69.1	4×114,3	45	N 12×1,25
Monte Carlo (Gen 5-7)	94-07	70.3	5×115	40	N 12×1,50
Nubira	03-11	56.6	4×114,3	44	N 12×1,50
Orlando	11-17	70.3	5×115	42	N 12×1,50
S-10 / S-10 Blazer 2WD	82-05	70.3	5×120,65	10	N 12×1,50
S-10 / S-10 Blazer 4WD	82-05	70.3	5×120,65	46	N 12×1,50
Silverado / C/K 1500 5-bolt	88-98	78.1	5×127	12	N 14×1,50
Silverado / C/K 1500 6-bolt	88-98	78.1	6×139,7	26	N 14×1,50
Silverado 1500	98-07	78.1	6×139,7	16	N 14×1,50
Silverado 1500HD	96-07	116.6	8×165,1	26	N 14×1,50
Silverado 1500	06-17	78.1	6×139,7	26	N 14×1,50
Silverado 2500	98-10	116.6	8×165,1	26	N 14×1,50
Silverado 2500	11-17	124.1	8×180	42	N 14×1,50
Silverado 3500	98-10	116.6	8×165,1	12	N 14×1,50
Silverado 3500	11-17	124.1	8×180	42	N 14×1,50
Sonic	11-17	56.6	5×105	40	N 12×1,50
Spark	10-15	56.6	4×100	44	N 12×1,50
SSR / Super Sport Roadster	03-06	86	6×127	27	N 12×1,50
Suburban 1500	92-00	78.1	6×139,7	21	N 14×1,50
Suburban 1500	00-06	78.1	6×139,7	21	N 14×1,50
Suburban 1500	06-14	78.1	6×139,7	22	N 14×1,50
Suburban 1500	14-17	78.1	6×139,7	31	N 14×1,50
Tacuma	00-08	56.6	4×114,3	44	N 12×1,50
Tahoe 5-bolt	92-00	78.1	5×127	10	N 14×1,50
Tahoe 6-bolt	92-00	78.1	6×139,7	21	N 14×1,50
Tahoe	00-06	78.1	6×139,7	22	N 14×1,50
Tahoe	06-14	78.1	6×139,7	25	N 14×1,50
Tahoe	14-17	78.1	6×139,7	25	N 14×1,50
TrailBlazer (Gen 1)	01-09	78.1	6×127	35	N 12×1,50
Trans Sport / Venture	97-05	70.3	5×115	46	N 12×1,50
Trans Sport AWD / Venture AWD	97-05	70.3	5×115	46	N 12×1,50
Traverse	08-17	74.5	6×132	42	N 14×1,50
Trax	13-17	56.6	5×105	39	N 12×1,50
Uplander 5-bolt	05-09	70.3	5×115	46	N 12×1,50
Uplander 6-bolt	05-09	70.3	6×115	46	N 12×1,50
Van / G-serie Van 5-bolt	71-97	78.3	5×127	10	N 1/2"-RH
Van / G-serie Van 6-bolt	71-97	78.3	6×139,7	10	N 14×1,50
Volt	11-17	70.3	5×115	41	N 12×1,50

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
200	11-14	67.1	5×114,3	42	N 12×1,50
200	15-16	65.1	5×110	42	N 12×1,25
300C	05-16	71.6	5×115	24	N 14×1,50
300C AWD	05-16	71.6	5×115	55	N 14×1,50
300M	99-04	71.6	5×114,3	40	N 12×1,50
Aspen	07-09	77.8	5×139,7	30	N 9/16"
Cirrus	95-00	57.1	5×100	42	N 12×1,50
Concorde	93-04	71.6	5×114,3	40	N 12×1,50
Crossfire	04-08	66.6	5×112	40	N 12×1,50
Grand Voyager, Voyager / Town & Country	84-07	71.6	5×114,3	40	N 12×1,50
Grand Voyager, Voyager / Town & Country	08-16	71.6	5×127	40	N 12×1,50
LeBaron Cab/Coupe	82-86	57.1	4×100	40	N 12×1,50
LeBaron Sedan	82-88	57.1	4×100	40	N 12×1,50
LeBaron Cab/Coupe	87-95	57.1	5×100	40	N 12×1,50
LeBaron Sedan	89-94	57.1	5×100	40	N 12×1,50
LHS	94-02	71.6	5×114,3	40	N 12×1,50
Neon 4-bolt	94-96	57.1	4×100	40	N 12×1,50
Neon 5-bolt	94-05	57.1	5×100	40	N 12×1,50
New Yorker	94-96	71.6	5×114,3	40	N 12×1,50
Pacifica crossover	04-08	71.6	5×127	46	N 12×1,50
Pacifica minivan	17-17	71.6	5×127	41	N 12×1,50
Prowler	97-02	71.6	5×114,3	40	N 12×1,50
PT Cruiser	00-10	57.1	5×100	40	N 12×1,50
Saratoga	89-95	57.1	5×100	40	N 12×1,50
Sebring Cab/Sedan	96-06	57.1	5×100	42	N 12×1,50
Sebring Coupe	95-05	67.1	5×114,3	42	N 12×1,50
Sebring	07-10	67.1	5×114,3	42	N 12×1,50
Stratus Cab/Sedan	95-00	57.1	5×100	42	N 12×1,50
Vision	93-97	71.6	5×114,3	40	N 12×1,50

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
Ami	61-88	–	3×160	–	–
AX (3-bolt)	86-98	55.1	3×98	16	B 12×1,25
AX GTi (4-bolt)	92-98	65.1	4×108	23	B 12×1,25
Berlingo (14-inch, gen 1)	96-08	65.1	4×108	23	B 12×1,25
Berlingo (15-inch, gen 1)	96-08	65.1	4×108	18	B 12×1,25
Berlingo (Gen 2)	08-16	65.1	4×108	27	B 12×1,25
BX	82-94	65.1	4×108	23	B 12×1,25
C-Crosser (compact SUV)	07-12	67.1	5×114,3	40	N 12×1,50
C-Zero	10-16	56.1	4×100	35	N 12×1,50
C1 (Gen 1)	05-14	54.1	4×100	40	B 12×1,50
C1 (Gen 2)	14-17	54.1	4×100	36	B 12×1,50
C15 (3-bolt)	84-05	55.1	3×98	16	B 12×1,25
C2	03-10	65.1	4×108	27	B 12×1,25
C3, C3 Pluriel (Gen 1-2)	02-16	65.1	4×108	27	B 12×1,25
C3 Picasso (mini MPV)	09-16	65.1	4×108	19	B 12×1,25
C4 (Gen 1-2)	04-16	65.1	4×108	27	B 12×1,25
C4 Aircross (compact SUV)	12-16	67.1	5×114,3	40	N 12×1,50
C4 Cactus (compact SUV)	14-16	65.1	4×108	19	B 12×1,25
C4 Picasso, Grand Picasso (compact MPV, gen 1)	06-13	65.1	4×108	27	B 12×1,25
C4 Picasso, Grand Picasso (compact MPV, gen 2)	13-17	65.1	5×108	48	B 12×1,25
C5 (Gen 1)	01-08	65.1	4×108	19	B 12×1,25
C5, C5 Tourer (Gen 2)	08-17	65.1	5×108	32	B 12×1,25
C6	05-13	65.1	5×108	32	B 12×1,25
C8	02-14	58.1	5×98	27	B 14×1,50
CX	74-91	58.1	5×98	48	B 12×1,25
DS / Padda	55-76	Square center bore	5×160	48	–
DS 3	09-17	65.1	4×108	22	B 12×1,25
DS 4	10-17	65.1	4×108	28	B 12×1,25
DS 5	11-17	65.1	4×108	27	B 12×1,25
Evasion	94-02	58.1	5×98	31	B 14×1,50
Jumper (small chassi, 15-inch wheel)	94-16	71.1	5×118	68	B 14×1,50
Jumper MAXI (large chassi, 16-inch wheel)	94-16	78.1	5×130	68	B 16×1,50
Jumpy (Gen 1)	96-07	58.1	5×98	32	B 14×1,50
Jumpy (Gen 2)	07-16	65.1	5×108	39	B 12×1,25
Nemo	07-17	58.1	4×98	44	B 12×1,50
Saxo (3-bolt)	96-03	55.1	3×98	16	B 12×1,25
Saxo (4-bolt)	96-03	65.1	4×108	22	B 12×1,25
SM	70-76	–	5×160	48	–
Xantia	93-01	65.1	4×108	15	B 12×1,25
XM	89-01	65.1	5×108	45	B 12×1,25
Xsara, Xsara Picasso	97-06	65.1	4×108	19	B 12×1,25
ZX	91-99	65.1	4×108	22	B 12×1,25

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
Dokker / Dokker Van	12-16	60.1	4×100	40	B 12×1,50
Duster	10-16	66.1	5×114,3	45	B 12×1,50
Lodgy	12-16	60.1	4×100	40	B 12×1,50
Logan	04-12	60.1	4×100	40	B 12×1,50
Logan MCV	12-16	60.1	4×100	40	B 12×1,50
Sandero	08-12	60.1	4×100	40	B 12×1,50
Sandero	12-16	60.1	4×100	40	B 12×1,50

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
Aveo	04-08	56.6	4×100	45	N 12×1,50
Espero	90-97	56.6	4×100	49	B 12×1,50
Evanda / Chevrolet Evanda	00-06	56.6	4×114,3	45	N 12×1,50
Kalos	02-11	56.6	4×100	45	N 12×1,50
Lacetti	02-11	56.6	4×114,3	44	N 12×1,50
Lanos	97-04	56.6	4×100	46	B 12×1,50
Leganza	97-03	56.6	5×114,3	49	N 12×1,50
Leganza	03-06	56.6	4×114,3	45	N 12×1,50
Matiz (Gen 1-2)	98-09	69.1	4×114,3	45	N 12×1,25
Nexia	95-98	56.6	4×100	45	B 12×1,50
Nubira	97-03	56.6	4×100	46	N 12×1,50
Nubira	03-11	56.6	4×114,3	44	N 12×1,50
Rezzo	00-08	56.6	4×114,3	44	N 12×1,50
Tacuma	00-08	56.6	4×114,3	44	N 12×1,50

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
Applause	89-00	56.1	4×100	45	N 12×1,50
Charade (Gen 3-4)	87-00	56.1	4×100	45	N 12×1,50
Feroza (F300)	88-98	108.1	5×139,7	15	N 12×1,50
Hijet / Porter (Van, Pickup)	87-00	56.1	4×100	40	N 12×1,50
Hijet / Porter (Van, Pickup)	00-16	54.1	4×100	40	N 12×1,50
Move (Gen 1)	96-98	56.1	4×100	45	N 12×1,50
Rocky (F70/F75/F77/F78)	84-02	108.1	5×139,7	15	N 12×1,50
Sirion (Gen 1-2)	98-16	54.1	4×100	40	N 12×1,50
Terios (Gen 2)	06-16	66.5	5×114,3	45	N 12×1,50

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
Avenger (Gen 1-2)	95-14	67.1	5×114,3	42	N 12×1,50
Caliber, Caliber SRT-4	07-12	67.1	5×114,3	41	N 12×1,50
Caravan base, SE (Gen 1)	84-85	57.1	4×100	40	N 12×1,50
Caravan base, SE (Gen 1-2)	86-96	57.1	5×100	40	N 12×1,50
Challenger (E-body)	70-74	71.6	5×114,3	5	N 1/2"-RH
Challenger (Gen 3)	08-18	71.6	5×115	22	N 14×1,50
Challenger AWD (Gen 3)	17-18	71.6	5×115	53	N 14×1,50
Challenger SRT-8 (Gen 3)	08-18	71.6	5×115	18	N 14×1,50
Challenger Hellcat	15-18	71.6	5×115	18	N 14×1,50
Charger (B-body)	66-78	71.6	5×114,3	5	N 1/2"-RH
Charger (Gen 1-2, LX platform)	06-18	71.6	5×115	22	N 14×1,50
Charger AWD (Gen 1-2, LX platform)	07-18	71.6	5×115	53	N 14×1,50
Charger SRT-8 (Gen 1-2, LX platform)	06-18	71.6	5×115	18	N 14×1,50
Charger Hellcat	15-18	71.6	5×115	18	N 14×1,50
Dakota (5-bolt, gen 1)	87-90	71.6	5×114,3	25	N 1/2"-RH
Dakota (6-bolt, gen 1-2)	91-04	71.6	6×114,3	25	N 1/2" (20 UNF)
Dakota (Gen 3)	05-11	78.1	5×139,7	20	N 14×1,50
Dart	13-17	65.1	5×110	45	N 12×1,25
Daytona 4-bolt	82-84	57.1	4×100	42	N 12×1,50
Daytona 5-bolt	85-93	57.1	5×100	42	N 12×1,50
Durango (Gen 1)	98-03	71.6	6×114,3	30	N 1/2" (20 UNF)
Durango (Gen 2)	04-10	78.1	5×139,7	35	N 1/2" (20 UNF)
Durango (Gen 3)	11-18	71.6	5×127	53	N 1/2" (20 UNF)
Full-size cars	57-76	71.6	5×114,3	5	N 1/2"-RH
Grand Caravan Caravan LE (Gen 1-2)	87-96	71.6	5×114,3	40	N 12×1,50
Grand Caravan, Caravan (Gen 3-4)	96-07	71.6	5×114,3	40	N 12×1,50
Grand Caravan (Gen 5)	08-18	71.6	5×127	40	N 12×1,50
Intrepid (Gen 1-2)	93-04	71.6	5×114,3	41	N 12×1,50
Journey	09-17	71.6	5×127	42	N 1/2" (20 UNF)
Magnum (LX platform)	05-08	71.6	5×115	22	N 14×1,50
Magnum AWD (LX platform)	05-08	71.6	5×115	53	N 14×1,50
Magnum SRT-8 (LX platform)	05-08	71.6	5×115	18	N 14×1,50
Neon (4-bolt, gen 1)	94-96	57.1	4×100	40	N 12×1,50
Neon (5-bolt, gen 1-2)	94-05	57.1	5×100	40	N 12×1,50
Neon SRT-4	03-05	57.1	5×100	45	N 12×1,50
Nitro	07-12	71.6	5×114,3	40	N 1/2"
Pickup 1/2 ton	49-80	71.6	5×114,3	10	N 1/2"-RH
Ram Pickup 150 5-bolt (D/W)	81-93	77.8	5×139,7	20	N 1/2"-RH
Ram Pickup 250/350 8-bolt (D/W)	81-93	120.9	8×165,1	10	N 9/16" (18 UNF)
Ram Pickup 1500 (BR/BE, DR/DH)	94-08	77.8	5×139,7	25	N 9/16" (18 UNF)
Ram Pickup 1500 (DS/DJ)	09-18	77.8	5×139,7	20	N 14×1,50
Ram 1500 Pickup (DT)	19-20	77.8	6×139,7	20	M 14×1,50
Ram Pickup 2500 (BR/BE)	94-02	120.9	8×165,1	25	N 9/16" (18 UNF)
Ram Pickup 2500 (DR/DH, DS/DJ)	03-17	120.9	8×165,1	45	N 9/16" (18 UNF)
Ram Pickup 3500 (BR/BE)	94-02	120.9	8×165,1	15	N 9/16" (18 UNF)
Ram Pickup 3500 (DR/DH, DS/DJ)	03-17	120.9	8×165,1	45	N 9/16" (18 UNF)
Spirit	89-95	57.1	5×100	40	N 12×1,50
Stealth, Stealth AWD, Turbo	91-96	67.1	5×114,3	40	N 12×1,50
Stratus Coupé	01-06	67.1	5×114,3	41	N 12×1,50
Stratus Sedan (Gen 1-2)	95-06	57.1	5×100	41	N 12×1,50
Van 1/2 ton	49-80	71.6	5×114,3	10	N 1/2"-RH
Van/Ram Van 5-bolt (B-Series, gen 1-2)	71-85	71.6	5×114,3	10	N 1/2"-RH
Van/Ram Van 8-bolt (B-Series, gen 1-2)	71-93	120.9	8×165,1	10	N 9/16" (18 UNF)
Van/Ram Van 1500 (B-Series, gen 2-3)	86-03	77.8	5×139,7	10	N 1/2"-RH
Van/Ram Van 2500 (B-Series, gen 3)	94-03	120.9	8×165,1	10	N 1/2" (20 UNF)
Van/Ram Van 3500 (B-Series, gen 3)	94-03	120.9	8×165,1	10	N 9/16" (18 UNF)
Viper (Gen 1-3)	92-17	71.6	6×114,3	50 front, 70 rear	N 1/2" (20 UNF)

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
348	89-94	67.1	5×108	50 front, 60 rear	N 14×1,50
360 Modena, Spider	99-05	67.1	5×108	30 front, 40 rear	N 14×1,50
456, 456M	92-03	67.1	5×108	50 front, 25 rear	N 14×1,50
458 Italia, Spider	10-15	67.1	5×114,3	45 front, 58 rear	N 14×1,50
458 Speciale	13-15	67.1	5×114,3	45 front, 48 rear	N 14×1,50
488 GTB, Spider	15-17	67.1	5×114,3	45 front, 58 rear	N 14×1,50
512 TR, F512 M	91-96	67.1	5×108	46 front, 82 rear	N 14×1,50
550, 575M	96-06	67.1	5×108	42 front, 32 rear	N 14×1,50
599 GTB Fiorano	06-12	67.1	5×114,3	42 front, 64 rear	B 14×1,50
612 Scaglietti	04-11	67.1	5×114,3	42 front, 50 rear	N 14×1,50
California, California T	08-16	67.1	5×114,3	44 front, 53 rear	N 14×1,50
Enzo Ferrari	02-04	63.5	5×114,3	5	N 16×1,50
F12berlinetta	12-17	67.1	5×114,3	48 front, 72 rear	B 14×1,50
F355	94-99	67.1	5×108	32 front, 77 rear	N 14×1,50
F40	87-96	–	5×108	–	–
F430, F430 Spider	04-09	67.1	5×108	30 front, 40 rear	N 14×1,50
FF	11-16	67.1	5×114,3	45 front, 52 rear	B 14×1,50
GTC4Lusso	16-17	67.1	5×114,3	45 front, 52 rear	B 14×1,50
Testarossa	84-91	67.1	5×108	34 front, 60 rear	N 14×1,50

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
124 Sport Spider	66-85	58.1	4×98	30	B 12×1,25
124 Spider	16-17	54.1	4×100	45	N 12×1,50
125	67-72	58.1	4×98	30	B 12×1,25
127	71-83	58.1	4×98	42	B 12×1,25
128	69-85	58.1	4×98	42	B 12×1,25
131	74-84	58.1	4×98	30	B 12×1,25
132	72-81	58.1	4×98	30	B 12×1,25
500	07-16	58.1	4×98	42	B 12×1,25
500L	12-16	58.1	5×98	37	B 12×1,25
500X	13-16	65.1	5×110	42	B 12×1,25
Barchetta	95-05	58.1	4×98	42	B 12×1,25
Brava / Bravo (Gen 1)	95-01	58.1	4×98	42	B 12×1,25
Bravo (Gen 2)	07-14	58.1	4×98	32	B 12×1,25
Coupé	94-00	58.1	4×98	42	B 12×1,25
Croma	05-11	65.1	5×110	42	B 12×1,50
Doblò (Gen 1)	01-10	58.1	4×98	42	B 12×1,25
Doblò (Gen 2)	10-16	58.1	5×98	40	B 12×1,25
Ducato (small chassi, 15-inch wheel)	94-16	71.1	5×118	68	B 14×1,50
Ducato MAXI (large chassi, 16-inch wheel)	94-16	78.1	5×130	68	B 16×1,50
Fiorino boz	07-16	58.1	4×98	44	B 12×1,25
Freemont	11-16	71.6	5×127	40	N 12×1,50
Fullback	16-17	67.1	6×139,7	38	N 12×1,50
Marea	96-02	58.1	4×98	42	B 12×1,25
Multipla	98-10	58.1	4×98	42	B 12×1,25
Palio	98-06	58.1	4×98	35	B 12×1,25
Panda / Panda 4×4 (Gen 1-3)	80-16	58.1	4×98	35	B 12×1,25
Punto (Gen 1-2)	93-06	58.1	4×98	35	B 12×1,25
Punto / Grand Punto / Punto Evo (Gen 3)	06-16	56.6	4×100	42	B 12×1,50
Qubo	10-16	58.1	4×98	44	B 12×1,25
Regata	83-90	58.1	4×98	42	B 12×1,25
Ritmo	78-88	58.1	4×98	42	B 12×1,25
Scudo (Gen 1)	96-07	58.1	5×98	32	B 14×1,50
Scudo (Gen 2)	07-16	65.1	5×108	42	B 12×1,25
Scudo (Gen 3)	16-17	66.1	5×114,3	40	B 14×1,50
Stilo (all models)	01-07	58.1	4×98	42	B 12×1,25
Strada	01-14	58.1	4×98	42	B 12×1,25
Tempra	90-99	58.1	4×98	42	B 12×1,25
Tipo	88-95	58.1	4×98	42	B 12×1,25
Tipo	16-17	58.1	5×98	37	B 12×1,25
Uno	83-95	58.1	4×98	42	B 12×1,25
X1/9 / Bertone X1/9	72-89	58.1	4×98	30	B 12×1,25

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
Aerostar	86-97	70.3	5×114,3	20	N 1/2"-RH
B-Max	12-16	63.4	4×108	38	N 12×1,50
C-Max (Gen 1-2)	03-16	63.4	5×108	51	N 12×1,50
Cougar	98-02	63.4	4×108	45	N 12×1,50
Crown Victoria (Gen 1-2)	91-02	70.5	5×114,3	10	N 1/2" (20 UNF)
Crown Victoria (Gen 2, refresh)	03-11	70.5	5×114,3	50	N 1/2" (20 UNF)
EcoSport	14-17	63.4	4×108	38	N 12×1,50
Edge (Gen 1)	07-14	70.5	5×114,3	44	N 1/2" (20 UNF)
Edge (Gen 2)	15-17	63.4	5×108	52	N 14×1,50
Escape (Gen 1-2)	00-12	67.1	5×114,3	45	N 12×1,50
Escape (Gen 3)	13-17	63.4	5×108	52	N 14×1,50
Escort (Gen 3-6)	80-04	63.4	4×108	41	N 12×1,50
Escort Cosworth	92-96	63.4	4×108	21	N 12×1,50
Excursion	99-05	124.9	8×170	10	N 14×1,50
Expedition (Gen 1)	97-00	87.1	5×135	10	N 12×1,75
Expedition (Gen 1)	01-02	87.1	5×135	10	N 14×2,00
Expedition (Gen 2)	03-06	87.1	6×135	44	N 14×2,00
Expedition (Gen 3)	07-17	87.1	6×135	35	N 14×2,00
Explorer (Gen 1-5)	91-16	70.5	5×114,3	44	N 1/2"
F-150, F-100, Pickup (5-bolt, gen 1-9)	48-96	87.1	5×139,7	1	N 1/2"-RH
F-150 (Gen 10)	97-00	87.1	5×135	5	N 12×1,75
F-150 (Gen 10)	01-04	87.1	5×135	5	N 14×2,00
F-150 (Gen 11-13)	04-17	87.1	6×135	44	N 14×2,00
F-250, F-350, Super Duty, Pickup (8-bolt, gen 1-9)	48-96	124.9	8×165,1	1	N 9/16"
F-250, F-350, Super Duty (Gen 10-13)	97-17	124.9	8×170	5	N 14×2,00
Fiesta (Gen 1-2)	76-89	63.4	4×108	37	N 12×1,50
Fiesta (Gen 3)	89-97	63.4	4×108	40	N 12×1,50
Fiesta (Gen 4)	97-02	63.4	4×108	43	N 12×1,50
Fiesta (Gen 5-6)	02-17	63.4	4×108	48	N 12×1,50
Five Hundred	05-08	63.4	5×114,3	52	N 1/2" (20 UNF)
Flex	09-17	63.4	5×114,3	50	N 1/2" (20 UNF)
Focus (Gen 1)	98-04	63.4	4×108	48	N 12×1,50
Focus (Gen 2-3)	04-17	63.4	5×108	51	N 12×1,50
Focus RS (Gen 1)	02-04	63.4	4×108	55	N 12×1,50
Focus RS (Gen 2)	09-11	63.4	5×108	60	N 12×1,50
Focus RS (Gen 3)	16-17	63.4	5×108	55	N 12×1,50
Freestar	04-07	63.4	5×114,3	45	N 12×1,50
Galaxy (Gen 1)	95-06	57.1	5×112	55	B 14×1,50
Galaxy (Gen 2-3)	06-17	63.4	5×108	50	N 14×1,50
GT	04-06	67.1	5×114,3	50 front, 40 rear	N 12×1,75
Ka, Sport Ka, Street Ka (Gen 1)	96-08	63.4	4×108	39	N 12×1,50
Ka (Gen 2)	09-16	58.1	4×98	35	B 12×1,25
Kuga (Gen 1-2)	08-17	63.4	5×108	50	N 12×1,50
Maverick	00-07	67.1	5×114,3	50	N 12×1,50
Mondeo (Gen 1)	93-00	63.4	4×108	48	N 12×1,50
Mondeo (Gen 2-4)	00-17	63.4	5×108	51	N 12×1,50
Mustang (Gen 1)	64-73	70.3	5×114,3	22	N 1/2" (UNF 20)
Mustang (Gen 2-3)	74-93	63.4	4×108	22	N 1/2" (UNF 20)
Mustang (Gen 4)	94-04	70.3	5×114,3	30	N 1/2" (UNF 20)
Mustang (Gen 5)	05-14	70.3	5×114,3	42	N 1/2" (UNF 20)
Mustang (Gen 6)	15-18	70.5	5×114,3	45	N 14×1,50
Probe	88-92	59.5	5×114,3	40	N 12×1,50
Probe	93-97	67.1	5×114,3	40	N 12×1,50
Puma 14-inch	97-02	63.4	4×108	43	N 12×1,50
Puma 15-inch	97-02	63.4	4×108	35	N 12×1,50
Ranger (Mazda B-Series)	98-06	93.1	6×139,7	30	N 12×1,50
Ranger (Mazda BT-50)	06-11	93.1	6×139,7	30	N 12×1,50
Ranger (T6)	11-17	93.1	6×139,7	55	N 12×1,50
S-Max (Gen 1-2)	06-16	63.4	5×108	50	N 12×1,50
Scorpio (5-bolt, gen 1)	85-94	63.4	5×112	38	N 12×1,50
Scorpio (4-bolt, gen 2)	94-98	63.4	4×108	49	N 12×1,50
Sierra, Sierra Cosworth	82-94	63.4	4×108	41	N 12×1,50
Taurus, Taurus SHO (Gen 1-4)	86-07	63.4	5×108	42	N 12×1,50
Taurus, Taurus SHO (Gen 5-6)	08-17	63.4	5×114,3	50	N 12×1,50
Taurus X / Freestyle	05-09	63.4	5×114,3	50	N 12×1,50
Thunderbird	83-88	63.4	4×108	20	N 12×1,50
Thunderbird	89-97	63.4	5×108	40	N 12×1,50
Thunderbird	01-06	63.4	5×108	45	N 12×1,50
Tourneo Connect	13-17	63.4	5×108	50	N 12×1,50
Tourneo Courier	14-17	63.4	4×108	38	N 12×1,50
Tourneo Custom	13-17	65.1	5×160	60	N 14×2,00
Transit, Transit Custom (Gen 2-4)	86-17	65.1	5×160	60	N 14×2,00
Transit Connect (Gen 1-2)	02-17	63.4	5×108	51	N 12×1,50
Transit Courier	14-17	63.4	5×108	38	N 12×1,50
Van (5-bolt, E-Series)	61-16	87.1	5×139,7	1	N 1/2" (20 UNF)
Van (8-bolt, E-Series)	61-16	124.9	5×165,1	1	N 9/16"
Windstar	94-03	63.4	5×108	45	N 12×1,50

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
Accord (Gen 2-3)	82-90	56.1	4×100	45	N 12×1,50
Accord (Gen 4-6)	89-03	64.1	4×114,3	50	N 12×1,50
Accord (Gen 7-9)	03-16	64.1	5×114,3	52	N 12×1,50
Accord Coupé (Gen 6-9)	98-16	64.1	5×114,3	55	N 12×1,50
Civic (Gen 1-7)	72-06	56.1	4×100	45	N 12×1,50
Civic (Gen 8)	06-12	64.1	5×114,3	55	N 12×1,50
Civic, Civic Tourer / SW (Gen 9)	12-16	64.1	5×114,3	45	N 12×1,50
Civic Type R (Gen 7-8)	01-12	64.1	5×114,3	55	N 12×1,50
Civic Type R (Gen 9)	15-16	64.1	5×120	55	N 14×1,50
Concerto	90-94	56.1	4×100	45	N 12×1,50
CR-V/CRV (4-bolt, gen 1)	97-01	64.1	4×114,3	50	N 12×1,50
CR-V/CRV (5-bolt, gen 1-4)	97-16	64.1	5×114,3	50	N 12×1,50
CR-X/CRX, CR-X del Sol (Gen 1-3)	84-98	56.1	4×100	45	N 12×1,50
CR-Z/CRZ	10-16	64.1	5×114,3	55	N 12×1,50
Element	03-11	64.1	5×114,3	51	N 12×1,50
FR-V, FRV	04-09	64.1	5×114,3	48	N 12×1,50
HR-V, HRV (Gen 1)	99-06	64.1	5×114,3	55	N 12×1,50
HR-V, HRV (Gen 2)	16-16	64.1	5×114,3	46	N 12×1,50
Insight (Gen 2)	99-14	56.1	4×100	46	N 12×1,50
Integra (Gen 1-3)	85-01	56.1	4×100	45	N 12×1,50
Integra Type R (Gen 3)	98-01	64.1	5×114,3	55	N 12×1,50
Integra, Integra Type R (Gen 4)	02-06	64.1	5×114,3	55	N 12×1,50
Jazz (Gen 1-3)	01-16	56.1	4×100	45	N 12×1,50
Legend (Gen 1)	87-91	64.1	4×114,3	50	N 12×1,50
Legend (Gen 2-3)	91-04	64.1	5×114,3	55	N 12×1,50
Legend (Gen 4)	04-12	64.1	5×120	55	N 14×1,50
Logo	99-01	56.1	4×100	35	N 12×1,50
NSX (Gen 1)	91-06	70.1 front. 64.1 rear	5×114,3	55 front, 60 rear	N 12×1,50
Odyssey (Gen 1-4)	94-16	64.1	5×114,3	50	N 12×1,50
Odyssey North America (Gen 1-2)	94-04	64.1	5×114,3	50	N 12×1,50
Odyssey North America (Gen 3-4)	04-16	64.1	5×120	45	N 14×1,50
Prelude (Gen 1-3)	79-92	56.1	4×100	45	N 12×1,50
Prelude (Gen 4)	92-97	64.1	4×114,3	50	N 12×1,50
Prelude (Gen 5)	97-02	64.1	5×114,3	50	N 12×1,50
Quint	80-85	56.1	4×100	45	N 12×1,50
Ridgeline (Pickup truck)	06-14	64.1	5×120	45	N 14×1,50
S2000 (Gen 1-2)	99-09	64.1	5×114,3	55	N 12×1,50
Shuttle	94-99	64.1	5×114,3	50	N 12×1,50
Stream (Gen 1-2)	01-14	64.1	5×114,3	51	N 12×1,50

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
H1	92-06	117	8×165,1	10	N 14×1,50
H2	02-09	117	8×165,1	10	N 14×1,50
H3	06-10	100	6×139,7	20	N 12×1,50

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
4-bolt (often twin axle)	–	57.1	4×100	30	–
5-bolt (often single axle)	–	57.1	5×112	30	–

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
4-bolt, all	85-89	–	4×100	30	–
5-bolt "small"	85-89	–	5×112	30	–
5-bolt "large"	85-89	–	5×120	30	–
4-bolt, all	16	–	4×100	30	–
5-bolt, all	16	–	5×112	30	–

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
4-bolt, steelwheel (twin axle)	5	55	4×100	30	–
4-bolt, aluminumwheel (twin axle)	05-06	69.1	4×100	35	–
5-bolt, steelwheel (single axle)	05-06	66.5	5×112	30	–
5-bolt, aluminumwheel (single axle)	05-06	69.1	5×112	35	–
4-bolt, steelwheel (twin axle)	7	57	4×100	30	–
4-bolt, aluminumwheel (twin axle)	7	67	4×100	30	–
5-bolt, all (single axle)	7	67	5×112	30	–
4-bolt, Hacienda (twin axle)	08-10	60	4×100	30	–
4-bolt, Hacienda (twin axle)	11	66	4×100	30	–
4-bolt (twin axle)	08-11	67	4×100	30	–
5-bolt, all (single axle)	08-11	67	5×112	30	–
4-bolt, all (twin axle)	12-14	67	4×100	30	–
5-bolt, all (single axle)	12-14	67	5×112	30	–
All	15-16	67	5×112	30	–

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
530 (the large bolt pattern)	79	–	4×139,7	–	–

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
Accent	95-99	67.1	4×114,3	46	N 12×1,50
Accent	00-06	54.1	4×100	46	N 12×1,50
Accent	07-11	54.1	4×100	46	N 12×1,50
Atos	98-00	67.1	4×114,3	46	N 12×1,50
Atos	01-07	54.1	4×100	46	N 12×1,50
Coupé	97-01	67.1	4×114,3	46	N 12×1,50
Coupé	02-08	67.1	5×114,3	46	N 12×1,50
Elantra	91-95	67.1	4×114,3	46	N 12×1,50
Elantra	96-00	67.1	4×114,3	46	N 12×1,50
Elantra	01-06	67.1	4×114,3	46	N 12×1,50
Genesis Coupé	10-16	67.1	5×114,3	35	N 12×1,50
Getz	03-09	54.1	4×100	46	N 12×1,50
Grandeur	06-10	67.1	5×114,3	38	N 12×1,50
H-1 / Starex	97-00	67.1	5×114,3	41	N 12×1,50
H-1 / Starex	01-07	67.1	5×120	41	N 14×1,50
H-1 / Starex	08-16	92.2	6×139,7	56	N 12×1,50
i10	08-13	54.1	4×100	46	N 12×1,50
i10	14-16	54.1	4×100	46	N 12×1,50
i20	08-14	54.1	4×100	46	M 12×1,50
i20	15-18	54.1	4×100	46	M 12×1,50
i30	07-18	67.1	5×114,3	46	M 12×1,50
i40	11-16	67.1	5×114,3	46	N 12×1,50
Ioniq	17-17	67.1	5×114,3	45	N 12×1,50
ix35 / Tucson	10-15	67.1	5×114,3	46	N 12×1,50
Kona	17-19	67.1	5×114,3	49	M 12×1,50
Matrix	01-08	67.1	4×114,3	46	N 12×1,50
Santa Fe	01-06	67.1	5×114,3	46	N 12×1,50
Santa Fe	07-12	67.1	5×114,3	41	N 12×1,50
Santa Fe	13-16	67.1	5×114,3	46	N 12×1,50
Sonata	93-98	67.1	4×114,3	46	N 12×1,50
Sonata	99-04	67.1	4×114,3	46	N 12×1,50
Sonata	05-10	67.1	5×114,3	46	N 12×1,50
Terracan	01-07	106.2	6×139,7	35	N 12×1,50
Tucson	05-10	67.1	5×114,3	46	N 12×1,50
Tucson	15-17	67.1	5×114,3	51	N 12×1,50
Veloster	12-16	67.1	5×114,3	46	N 12×1,50

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
EX/QX50 (J51)	08-16	66.1	5×114,3	40	N 12×1,25
FX (S50)	03-08	66.1	5×114,3	35	N 12×1,25
FX/QX70 (S51)	09-16	66.1	5×114,3	45	N 12×1,25
G/Q40/Q60 (V35, V36)	03-16	66.1	5×114,3	40	N 12×1,25
N (Y34, Y50, Y51)	03-16	66.1	5×114,3	40	N 12×1,25
Q50 (V37)	14-16	66.1	5×114,3	46	N 12×1,25
QX56/QX80 (JA60, Z62)	04-16	78.1	6×139,7	25	N 12×1,25

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
D-Max	02-11	100	6×139,7	35	N 12×1,50
D-Max	12-16	100	6×139,7	35	N 12×1,50
Pickup	88-02	108	6×139,7	30	N 12×1,50
Trooper	81-91	108	6×139,7	8	N 12×1,50
Trooper	92-02	108	6×139,7	30	N 12×1,50

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
E-Pace	17-	63.4	5×108	44	M 14×1,50
F-Pace	15-18	63.4	5×108	44	M 14×1,50
F-Type	13-18	63.4	5×108	35	M 12×1,50
I-Pace	18-19	63.4	5×108	48	M 14×1,50
S-Type	99-08	63.4	5×108	45	M 12×1,50
XE	15-18	63.4	5×108	45	M 12×1,50
XF / X250	08-15	63.4	5×108	45	M 12×1,50
XF / X260	16-18	63.4	5×108	45	M 12×1,50
XJ Series 1	68-73	73.8	5×120,65	33	M 1/2"
XJ Series 2	73-79	73.8	5×120,65	33	M 1/2"
XJ Series 3	79-92	73.8	5×120,65	33	M 1/2"
XJ / XJ40	87-94	73.8	5×120,65	33	M 1/2"
XJ / X300	94-97	73.8	5×120,65	33	M 1/2"
XJ / X308	97-03	73.8	5×120,65	33	M 1/2"
XJ / X350 / X358	03-09	63.4	5×108	45	M 12×1,50
XJ / X351	10-18	63.4	5×108	45	M 12×1,50
XK / XK8 / XKR	97-06	73.8	5×120,65	33	M 1/2"
XK / XKR	07-15	63.4	5×108	45	M 12×1,50
X-Type	02-09	63.4	5×108	45	M 12×1,50

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
Cherokee SJ	74-83	108	6×139,7	10	N 1/2"
Cherokee XJ	84-01	71.6	5×114,3	32	N 1/2"
Cherokee KJ (Liberty)	02-07	71.6	5×114,3	42	N 12×1,50
Cherokee KK (Liberty)	08-13	71.6	5×114,3	42	N 12×1,50
Cherokee KL	14-18	65.1	5×110	42	N 12×1,25
CJ / Willys Jeep / AMC Jeep (all models)	44-86	108	5×139,7	10	N 1/2"
Comanche MJ	85-92	71.6	5×114,3	32	N 1/2"
Commander XK	06-10	71.6	5×127	50	N 1/2"
Compass (gen 1)	07-17	67.1	5×114,3	40	N 12×1,50
Compass (gen 2)	17-18	65.1	5×110	40	N 12×1,25
Gladiator SJ	63-73	108	5×139,7	10	N 1/2"
Grand Cherokee ZJ	93-98	71.6	5×114,3	25	N 1/2"
Grand Cherokee WJ	99-04	71.6	5×127	50	N 1/2"
Grand Cherokee WK	05-10	71.6	5×127	50	N 1/2"
Grand Cherokee WK2	11-18	71.6	5×127	50	N 1/2"
Patriot	07-16	67.1	5×114,3	40	N 12×1,50
Pickup SJ / J10	74-88	108	6×139,7	10	N 1/2"
Pickup SJ / J20	74-88	120.9	8×165,1	10	N 9/16" (18 UNF)
Renegade	15-18	65.1	5×110	40	N 12×1,25
Wagoneer / Grand Wagoneer SJ	63-73	108	5×139,7	10	N 1/2"
Wagoneer / Grand Wagoneer SJ	74-92	108	6×139,7	10	N 1/2"
Wrangler YJ	87-95	67.1	5×114,3	15	N 12×1,50
Wrangler (all models) TJ	97-06	71.6	5×114,3	25	N 1/2"
Wrangler JK	07-17	71.6	5×127	44	N 1/2"
Wrangler Unlimited JK	07-17	71.6	5×127	44	N 1/2"

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
Carens	00-06	67.1	4×114,3	46	N 12×1,50
Carens	07-12	67.1	5×114,3	46	N 12×1,50
Carens	13-16	67.1	5×114,3	46	N 12×1,50
Carnival / Sedona	02-05	67.1	5×114,3	46	N 12×1,50
Carnival / Sedona	07-14	92.2	6×139,7	46	N 12×1,50
Carnival / Sedona	15-17	67.1	5×114,3	46	N 12×1,50
Cee'd	07-19	67.1	5×114,3	46	M 12×1,50
Cerato	04-09	67.1	4×114,3	46	N 12×1,50
Magentis / Optima	01-05	67.1	4×114,3	46	N 12×1,50
Magentis / Optima	06-10	67.1	5×114,3	46	N 12×1,50
Niro	16-17	67.1	5×114,3	45	N 12×1,50
Optima	11-15	67.1	5×114,3	41	N 12×1,50
Optima	16-16	67.1	5×114,3	41	N 12×1,50
Picanto	04-18	54.1	4×100	46	M 12×1,50
Rio	00-04	54.1	4×100	45	N 12×1,50
Rio	05-11	54.1	4×100	46	N 12×1,50
Rio	12-16	54.1	4×100	46	N 12×1,50
Sephia	92-97	56.1	4×100	46	N 12×1,50
Sephia	98-04	56.1	4×100	46	N 12×1,50
Shuma	98-04	56.1	4×100	46	N 12×1,50
Sorento	03-08	95.1	5×139,7	46	N 12×1,50
Sorento	09-14	67.1	5×114,3	46	N 12×1,50
Sorento	15-19	67.1	5×114,3	46	N 12×1,50
Soul	09-13	67.1	5×114,3	46	N 12×1,50
Soul	14-16	67.1	5×114,3	46	N 12×1,50
Sportage	93-03	95.1	5×139,7	46	N 12×1,50
Sportage	04-19	67.1	5×114,3	46	M 12×1,50
Stinger	17-19	67.1	5×114,3	33	M 12×1,50
Stonic	17-19	54.1	4×100	48	M 12×1,50
Venga	10-16	67.1	5×114,3	46	N 12×1,50

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
X-Bow	08-17	57.1	5×112	25 front, 42 rear	B 14×1,50

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
110, 111, 112	95-09	58.6	4×98	40	B 12×1,25
Granta	12-16	58.6	4×98	35	B 12×1,25
Kalina	04-16	58.6	4×98	38	B 12×1,25
Largus	12-16	60.1	4×100	45	B 12×1,5
Niva	77-16	98.1	5×139,7	55	B 12×1,25
Priora	07-16	58.6	4×98	38	B 12×1,25
Samara	84-13	58.6	4×98	40	B 12×1,25

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
Aventador	11-16	57.1	5×112	32 front, 55 rear	B 14×1,50
Countach	74-90	70.3	5×120	40 front, 60 rear	B 12×1,50
Diablo	90-01	70.3	5×120,65	40 front, 60 rear	B 12×1,50
Gallardo	04-14	57.1	5×112	42 front, 55 rear	B 14×1,50
Huracán	14-16	57.1	5×112	42	B 14×1,50
LM002 SUV	86-93	111	8×139,7	75	N 12×1,50
Murciélago	01-10	72.6	5×120,65	58 front, 15 rear	B 14×1,50

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
Dedra	89-00	58.1	4×98	40	B 12×1,25
Delta (Gen 1-2)	79-99	58.1	4×98	40	B 12×1,25
Delta (Gen 3)	08-14	58.1	4×98	35	B 12×1,25
Kappa	94-00	58.1	4×108	42	B 12×1,25
Musa	04-12	58.1	4×98	40	B 12×1,25
Phedra	02-11	58.1	5×98	32	B 14×1,50
Prisma	82-89	58.1	4×98	40	B 12×1,25
Thema	84-94	58.1	4×98	40	B 12×1,25
Thema	11-15	71.6	5×115	25	N 14×1,25
Voyager	11-16	71.6	5×127	40	N 12×1,50
Y10	85-95	58.1	4×98	38	B 12×1,25
Ypsilon / Y (Gen 1)	96-03	58.1	4×98	35	B 12×1,25
Ypsilon (Gen 2-3)	03-16	58.1	4×98	30	B 12×1,25
Zeta	94-02	58.1	5×98	32	B 14×1,50

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
Defender	90-16	114.3	5×165,1	33	N 16×1,50
Discovery 1 (Gen 1, Series 1)	89-98	114.3	5×165,1	33	N 16×1,50
Discovery 2 (Gen 1, Series 2)	98-05	70.1	5×120	57	N 14×1,50
Discovery 3, 4 (Gen 2, Series 1-2)	05-16	72.6	5×120	55	N 14×1,50
Discovery Sport	15-16	63.4	5×108	45	N 14×1,50
Freelander (Gen 1)	98-06	64.1	5×114,3	42	N 12×1,50
Freelander (Gen 2)	07-15	63.4	5×108	50	N 14×1,50
Range Rover (Gen 2)	94-02	70.1	5×120	35	N 14×1,50
Range Rover, Range Rover Sport (Gen 3)	02-13	72.6	5×120	52	N 14×1,50
Range Rover, Range Rover Sport (Gen 4)	13-16	72.6	5×120	47	N 14×1,50
Range Rover Evoque	11-16	63.4	5×108	45	N 14×1,50

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
CT 200h (A10)	11-16	54.1	5×100	45	N 12×1,50
GS 300 (S140)	93-97	60.1	5×114,3	50	N 12×1,50
GS 300, 430 (S160)	98-04	60.1	5×114,3	50	N 12×1,50
GS 300, 430, 450h (S190)	05-11	60.1	5×114,3	45	N 12×1,50
GS 250, 250 F SPORT, 300h, 450h (L10)	12-16	60.1	5×114,3	44	N 12×1,50
GX 470 (J120)	03-09	106.1	6×139,7	25	N 12×1,50
GX 460 (J150)	09-16	106.1	6×139,7	25	N 12×1,50
IS 200, 300 (XE10)	99-06	60.1	5×114,3	50	N 12×1,50
IS 200d, 220d, 250, 350, F (XE20)	06-13	60.1	5×114,3	50	N 12×1,50
IS 200t, 250, 250 F SPORT, 300h (XE30)	13-16	60.1	5×114,3	50	N 12×1,50
LS 400 (XF10)	90-94	60.1	5×114,3	45	N 12×1,50
LS 400 (XF20)	95-00	60.1	5×114,3	50	N 12×1,50
LS 430 (XF30)	01-06	60.1	5×114,3	50	N 12×1,50
LS 460, 600h (XF40)	07-16	60.1	5×120	35	N 14×1,50
LX 470 (J80)	96-97	110.1	5×150	60	N 14×1,50
LX 470 (J100)	98-07	110.1	5×150	60	N 14×1,50
LX 570 (J200)	08-16	110.1	5×150	60	N 14×1,50
NX 200t, 300h (AZ10)	14-16	60.1	5×114,3	40	N 12×1,50
RC 200t, F (XC10)	15-16	60.1	5×114,3	40	N 12×1,50
RX 300 (XU10)	98-03	60.1	5×114,3	35	N 12×1,50
RX 300, 350, 400h (XU30)	03-09	60.1	5×114,3	35	N 12×1,50
RX 350, 450h (AL10)	09-15	60.1	5×114,3	35	N 12×1,50
RX 200t, 450h (AL20)	16-16	60.1	5×114,3	32	N 12×1,50
SC 300, 400 (Z30)	91-00	60.1	5×114,3	50	N 12×1,50
SC 430 (Z40)	01-10	60.1	5×114,3	45	N 12×1,50

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
Aviator	03-05	70.5	5×114,3	35	N 12×1,50
Blackwood	2	87.1	5×135	10	N 14×1,50
Continental	88-02	63.4	5×108	40	N 12×1,50
LS	99-06	63.4	5×108	40	N 12×1,50
Mark III	68-72	70.5	5×114,3	10	N 1/2"
Mark IV / V	73-79	70.5	5×127	10	N 1/2"
Mark LT (Gen 1-2)	05-14	87.1	6×135	45	N 14×2,00
Mark VI	80-83	70.5	5×114,3	10	N 1/2"
Mark VII / LSC	84-92	70.5	5×114,3	20	N 1/2"
Mark VIII / LSC	93-98	63.4	5×108	40	N 12×1,50
MKC	15-16	63.4	5×108	53	N 12×1,50
MKS	09-16	63.4	5×114,3	45	N 12×1,50
MKT	10-16	67.1	5×114,3	40	N 12×1,50
MKX (Gen 1)	07-15	70.5	5×114,3	45	N 1/2"x20
MKX (Gen 2)	16-16	63.4	5×108	50	N 1/2"x20
MKZ / Zephyr (Gen 1)	06-12	67.1	5×114,3	45	N 12×1,50
MKZ (Gen 2)	13-16	63.4	5×108	50	N 12×1,50
Navigator (Gen 1)	98-02	70.1	5×135	15	N 12×1,75
Navigator (Gen 2)	03-06	87.1	6×135	45	N 14×2,00
Navigator (Gen 3)	07-16	87.1	6×135	45	N 14×2,00
Town Car (Gen 1-3)	81-02	70.5	5×114,3	10	N 1/2"
Town Car (Gen 3, refresh)	03-11	70.5	5×114,3	50	N 1/2" (20 UNF)

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
Elise (Series 1)	96-01	56.6	4×95,3	12	N 12×1,50
Elise (Series 2-3)	01-17	56.6	4×100	30 front, 35 rear	N 12×1,50
Esprit (Gen 5)	93-04	56.1	5×108	23 front, 30 rear	N 12×1,50
Exige (Series 1)	00-02	56.6	4×95,3	12	N 12×1,50
Exige (Series 2-3)	01-17	56.6	4×100	31 front, 38 rear	N 12×1,50
Evora	10-17	68.1	5×114,3	52 front, 69 rear	N 12×1,50

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
3200 GT	98-02	67.1	5×108	53	B 14×1,5
Coupé / Spyder / 4200 GT / GranSport	02-07	67.1	5×108	53	B 14×1,5
Ghibli	92-98	67.1	5×108	53	B 14×1,5
Ghibli	13-16	67.1	5×114,3	44	B 14×1,5
GranCabrio	10-16	67.1	5×114,3	53	B 14×1,5
GranTurismo	07-16	67.1	5×114,3	53	B 14×1,5
Quattroporte IV	94-02	67.1	5×108	44	B 14×1,5
Quattroporte V	03-12	67.1	5×114,3	53	B 14×1,5
Quattroporte VI	13-16	67.1	5×114,3	44	B 14×1,5

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
121	88-91	59.6	4×114,3	45	N 12×1,50
121	91-96	54.1	4×100	45	N 12×1,50
121	96-02	63.4	4×108	41	N 12×1,50
2	03-07	63.4	4×108	47,5	N 12×1,50
2	07-14	54.1	4×100	45	N 12×1,50
2	14-16	54.1	4×100	40	N 12×1,50
3	03-16	67.1	5×114,3	52,5	N 12×1,50
323	81-89	59.6	4×114,3	45	N 12×1,50
323 / 323F / AWD	89-94	54.1	4×100	45	N 12×1,50
323 GT-R	92-93	67.1	5×114,3	45	N 12×1,50
323 4-bolt	94-03	54.1	4×100	45	N 12×1,50
323 5-bolt	94-03	67.1	5×114,3	45	N 12×1,50
5	99-16	67.1	5×114,3	52,5	N 12×1,50
6	02-16	67.1	5×114,3	50	N 12×1,50
626 4-bolt	83-92	59.6	4×114,3	45	N 12×1,50
626 5-bolt	87-92	59.6	5×114,3	42	N 12×1,50
626	92-97	67.1	5×114,3	45	N 12×1,50
626	97-02	67.1	5×114,3	50	N 12×1,50
929	82-87	59.6	4×114,3	45	N 12×1,50
929	87-92	67.1	5×114,3	45	N 12×1,50
B-series / Pickup / 2WD & 4×4	85-98	93.1	6×139,7	25	N 12×1,50
B-series / Pickup / 2WD	98-06	93.1	6×139,7	25	N 12×1,50
B-series / Pickup / 4×4	98-06	93.1	6×139,7	30	N 12×1,50
BT-50 / Pickup / 2WD & 4×4	06-16	93.1	6×139,7	25	N 12×1,50
CX-3	15-17	67.1	5×114,3	50	N 12×1,50
CX-5	12-16	67.1	5×114,3	50	N 12×1,50
CX-7	07-12	67.1	5×114,3	50	N 12×1,50
CX-9	07-16	67.1	5×114,3	50	N 12×1,50
Demio	98-03	54.1	4×100	45	N 12×1,50
E-series / E2000/E2200	83-16	93.1	6×139,7	45	N 12×1,50
MPV	99-06	67.1	5×114,3	50	N 12×1,50
MX-3	91-99	54.1	4×100	40	N 12×1,50
MX-5 / MX-5 Miata	90-05	54.1	4×100	45	N 12×1,50
MX-5 / MX-5 Miata	05-15	67.1	5×114,3	50	N 12×1,50
MX-5 / MX-5 Miata	15-17	54.1	4×100	45	N 12×1,50
MX-6	92-97	67.1	5×114,3	45	N 12×1,50
Premacy	92-97	67.1	5×114,3	50	N 12×1,50
RX-7	79-86	59.6	4×114,3	45	N 12×1,50
RX-7	85-91	59.6	5×114,3	40	N 12×1,50
RX-7	91-02	67.1	5×114,3	50	N 12×1,50
RX-8	03-12	67.1	5×114,3	50	N 12×1,50
Tribute	01-12	67.1	5×114,3	45	N 12×1,50
Xedos 6 / Xedos 9	92-03	67.1	5×114,3	45	N 12×1,50

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
650S (Coupé, Spider)	14-16	57.1	5×112	47	B 14×1,50
MP4-12C, 12C	12-14	57.1	5×112	47	B 14×1,50

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
190 (W201)	83-93	66.6	5×112	49	B 12×1,50
A-class (W168)	97-04	66.6	5×112	54	B 12×1,50
A-class (W169)	04-12	66.6	5×112	44	B 14×1,50
A-class / A-class AMG (W176)	12-18	66.6	5×112	49	B 14×1,50
A-class (W177)	19-20	66.5	5×112	45	B 14×1,50
AMG GT (C190)	14-17	66.6	5×112	60 front, 68 rear	B 14×1,50
B-class (W245/T245)	05-11	66.6	5×112	45	B 14×1,50
B-class (W246)	11-17	66.6	5×112	49	B 14×1,50
C-class (W202, W203)	93-07	66.6	5×112	37	B 12×1,50
C-class / C-class AMG (W204)	07-14	66.5	5×112	46	B 14×1,50
C-class Coupé / AMG (W204/C204)	11-15	66.5	5×112	46	B 14×1,50
C-class (W205)	13-17	66.5	5×112	48	B 14×1,50
C-class AMG (W205)	13-17	66.5	5×112	38	B 14×1,50
C-class C450 AMG (W205)	15-17	66.5	5×112	49	B 14×1,50
C-class Coupé (W205/C205)	15-17	66.5	5×112	48	B 14×1,50
CL-class / CL-class AMG (W215/C215/Coupé)	99-06	66.6	5×112	46	B 14×1,50
CL-class / CL-class AMG (W216/C216/Coupé)	06-14	66.6	5×112	43	B 14×1,50
CLA-class / CLA-class AMG (W176/C117)	13-17	66.5	5×112	49	B 14×1,50
CLA-class Shooting Brake / AMG (W176/X117)	13-17	66.5	5×112	49	B 14×1,50
CLC-class / SportCoupé (CL203)	08-11	66.6	5×112	38	B 12×1,50
CLK-class (W208/W209)	97-09	66.6	5×112	37	B 12×1,50
CLS-class / CLS-class AMG (W219)	04-10	66.6	5×112	28	B 14×1,50
CLS-class (W218)	10-17	66.6	5×112	35	B 14×1,50
CLS-class AMG (W218)	10-17	66.6	5×112	37	B 14×1,50
CLS-class Shooting Brake (X218)	12-17	66.6	5×112	35	B 14×1,50
CLS-class Shooting Brake AMG (X218)	12-17	66.6	5×112	37	B 14×1,50
Citan / Renault Kangoo (W415)	12-17	60.1	5×108	44	B 12×1,50
E-class (W124)	84-95	66.6	5×112	49	B 12×1,50
E-class V8 420E, 500E (W124)	84-95	66.6	5×112	38	B 12×1,50
E-class (W210)	95-03	66.6	5×112	38	B 12×1,50
E-class (W211)	02-09	66.6	5×112	37	B 14×1,50
E-class (W212/S212)	09-16	66.5	5×112	49	B 14×1,50
E-class AMG (W212)	09-16	66.5	5×112	37	B 14×1,50
E-class Cab / Coupé (R207/C207)	09-16	66.5	5×112	46	B 14×1,50
E-class (W213/S213)	16-17	66.5	5×112	39	B 14×1,50
E-class AMG (W213)	16-17	66.5	5×112	21	B 14×1,50
G-class (460, 461, 463)	79-17	84.1	5×130	63	B 14×1,50
GL-class (X164)	06-12	66.6	5×112	55	B 14×1,50
GL-class (X166)	12-15	66.5	5×112	55	B 14×1,50
GL-class AMG (X166)	12-15	66.5	5×112	46	B 14×1,50
GLA-class (X156)	13-17	66.5	5×112	46	B 14×1,50
GLA-class AMG (X156)	13-17	66.5	5×112	42	B 14×1,50
GLC-class (X205)	15-17	66.5	5×112	41	B 14×1,50
GLC-class AMG (X205)	15-17	66.5	5×112	23	B 14×1,50
GLE-class Coupé (C292)	15-17	66.5	5×112	38	B 14×1,50
GLE-class Coupé AMG (C292)	15-17	66.5	5×112	42	B 14×1,50
GLE-class (W166)	15-17	66.5	5×112	55	B 14×1,50
GLE-class AMG (W166)	15-17	66.5	5×112	46	B 14×1,50
GLK-class (X204)	08-16	66.5	5×112	48	B 14×1,50
GLS-class (X166)	15-17	66.5	5×112	55	B 14×1,50
GLS-class AMG (X166)	15-17	66.5	5×112	46	B 14×1,50
Maybach / S-class (W222)	15-17	66.5	5×112	44	B 14×1,50
M-class / ML-class (W163)	97-05	66.6	5×112	60	B 14×1,50
M-class / ML-class (W164)	05-11	66.6	5×112	55	B 14×1,50
M-class / ML-class AMG (W164)	05-11	66.6	5×112	46	B 14×1,50
M-class / ML-class (W166)	11-15	66.6	5×112	55	B 14×1,50
M-class / ML-class AMG (W166)	11-15	66.6	5×112	46	B 14×1,50
R-class (W251)	06-12	66.6	5×112	55	B 14×1,50
S-class (W126)	79-91	66.6	5×112	32	B 14×1,50
S-class (W140)	91-99	66.6	5×112	46	B 14×1,50
S-class / S-class AMG (W220)	98-06	66.6	5×112	46	B 14×1,50
S-class / S-class AMG (W221)	05-14	66.6	5×112	43	B 14×1,50
S-class (W222/C217/A217)	13-17	66.5	5×112	42	B 14×1,50
S-class AMG (W222/C217/A217)	13-17	66.5	5×112	39	B 14×1,50
SL (R129)	89-02	66.6	5×112	32	B 12×1,50
SL (R230)	02-12	66.6	5×112	35	B 14×1,50
SL (R231)	12-17	66.6	5×112	36	B 14×1,50
SL AMG (R231)	12-17	66.6	5×112	28	B 14×1,50
SLC / SLC AMG / SLK (R172)	16-17	66.5	5×112	41	B 14×1,50
SLK / SLK AMG (R170, R171)	96-11	66.6	5×112	37	B 12×1,50
SLK / SLK AMG (R172)	11-17	66.5	5×112	41	B 14×1,50
SLS / SLS AMG (C197 / R197)	10-15	66.6	5×112	59	B 14×1,50
Sprinter 5-bolt	95-17	84.1	5×130	75	B 14×1,50
Sprinter 6-bolt	95-17	84.1	6×130	62	B 14×1,50
Vaneo	02-06	66.5	5×112	42	B 12×1,50
Vito / Viano / V-Class	96-03	66.5	5×112	60	B 14×1,50
Vito / Viano / V-Class	03-14	66.5	5×112	55	B 14×1,50
Vito / Viano / V-Class	14-17	66.5	5×112	52	B 14×1,50
X-Klass Pickup	17-19	66.1	6×114,3	50	M 12×1,25
Alaskan Pickup	17-19	66.1	6×114,3	46	M 12×1,25

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
MG F	95-02	56.6	4×95,2	28	N 12×1,50
Midget	61-80	65.1	4×101,6	20	N 12×1,50
MG TF	02-11	56.6	4×95,2	28	N 12×1,50
ZR	01-06	56.1	4×100	45	N 12×1,50
ZS	01-06	56.1	4×100	45	N 12×1,50
ZT	01-06	56.1	5×100	50	B 14×1,50

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
Mini Classic	59-00	–	4×101,6	–	–
Mini One / Cooper / S / JCW (gen 1)	01-06	56.1	4×100	46	B 12×1,50
Mini One / Cooper / S / JCW (gen 2)	06-14	56.1	4×100	48	B 14×1,25
Mini One / Cooper / S (gen 3)	14-18	66.5	5×112	46	B 14×1,25
Mini Cooper JCW (gen 3)	14-18	66.5	5×112	53	B 14×1,25
Mini Coupé / Roadster	11-15	56.1	4×100	46	B 14×1,25
Mini Clubman / Clubman S (gen 1)	07-14	56.1	4×100	48	B 14×1,25
Mini Clubman (gen 2)	15-18	66.5	5×112	46	B 14×1,25
Mini Clubman S (gen 2)	15-18	66.5	5×112	53	B 14×1,25
Mini Countryman (gen 1)	10-16	72.6	5×120	46	B 14×1,25
Mini Countryman (gen 2)	17-18	66.5	5×112	48	B 14×1,25
Mini Paceman	12-17	72.6	5×120	49	B 14×1,25

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
3000GT / GTO	92-01	67.1	5×114,3	46	N 12×1,50
ASX	10-17	67.1	5×114,3	46	N 12×1,50
Carisma 1.6 gasoline	95-99	56.1	4×100	44	N 12×1,50
Carisma 1.6 gasoline, 1.8 & 1.9 diesel (facelift)	99-04	67.1	4×114,3	44	N 12×1,50
Carisma 1.8 gasoline	95-04	67.1	4×114,3	44	N 12×1,50
Colt	87-91	67.1	4×114,3	45	N 12×1,50
Colt	92-04	56.1	4×100	44	N 12×1,50
Colt	04-12	67.1	4×114,3	46	N 12×1,50
Eclipse	95-05	67.1	5×114,3	46	M 12×1,50
Eclipse (GK0) Cross	17-	67.1	5×114,3	38	M 12×1,50
EVO / Lancer EVO 4-bolt	92-96	67.1	4×114,3	42	N 12×1,50
EVO / Lancer EVO 5-bolt	96-17	67.1	5×114,3	39	N 12×1,50
Galant	92-98	67.1	4×114,3	46	N 12×1,50
Galant 4-bolt	98-04	67.1	4×114,3	46	N 12×1,50
Galant 5-bolt	98-04	67.1	5×114,3	46	N 12×1,50
Galloper	91-03	111	6×139,7	22	N 12×1,50
Grandis	03-11	67.1	5×114,3	46	N 12×1,50
i	05-13	56.1	4×100	35	N 12×1,50
i-MiEV	09-17	56.1	4×100	35	N 12×1,50
L200 4×4 / Pickup	96-00	108	6×139,7	27	N 12×1,50
L200 4×4 / Pickup	01-05	108	6×139,7	10	N 12×1,50
L200 4×4 / Pickup	05-17	67.1	6×139,7	38	N 12×1,50
L300 / L400	94-17	67.1	5×114,3	40	N 12×1,50
Lancer	88-93	67.1	4×114,3	45	N 12×1,50
Lancer	93-03	56.1	4×100	45	N 12×1,50
Lancer SW	93-96	67.1	4×114,3	45	N 12×1,50
Lancer 4-bolt	03-08	67.1	4×114,3	46	N 12×1,50
Lancer 5-bolt	03-08	67.1	5×114,3	46	N 12×1,50
Lancer	08-17	67.1	5×114,3	46	N 12×1,50
Outlander	03-07	67.1	5×114,3	46	N 12×1,50
Outlander	07-17	67.1	5×114,3	38	N 12×1,50
Pajero / Shogun	91-00	108	6×139,7	23	N 12×1,50
Pajero / Shogun	00-17	67.1	6×139,7	45	N 12×1,50
Pajero Pinin / iO / mini SUV	99-07	67.1	5×114,3	45	N 12×1,50
Pajero Sport	97-07	108	6×139,7	23	N 12×1,50
Sigma	91-96	67.1	5×114,3	46	N 12×1,50
Space Star	98-05	67.1	4×114,3	45	N 12×1,50
Space Star	12-17	56.1	4×100	45	N 12×1,50
Space Wagon	83-98	67.1	4×114,3	46	N 12×1,50
Space Wagon	98-04	67.1	5×114,3	46	N 12×1,50

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
100NX / NX	90-96	59.1	4×100	44	N 12×1,25
200SX (S13)	89-94	66.1	4×114,3	44	N 12×1,25
200SX (S14)	94-99	66.1	5×114,3	40	N 12×1,25
240SX (S13)	89-94	66.1	4×114,3	45	N 12×1,25
240SX (S14)	94-99	66.1	5×114,3	40	N 12×1,25
300ZX (Z31, Z32)	89-02	66.1	5×114,3	30	N 12×1,25
350Z (Z33)	02-09	66.1	5×114,3	32	N 12×1,25
370Z (Z34)	09-17	66.1	5×114,3	46	N 12×1,25
Almera (N15)	95-00	59.1	4×100	44	N 12×1,25
Almera (N16)	00-06	66.1	4×114,3	44	N 12×1,25
Almera Tino (v10)	98-06	66.1	5×114,3	40	N 12×1,25
Altima	01-06	66.1	5×114,3	40	N 12×1,25
Armada	03-15	78.1	6×139,7	24	N 12×1,25
Bluebird	83-98	66.1	4×114,3	44	N 12×1,25
Cube (Z12)	12-15	66.1	4×114,3	42	N 12×1,25
e-NV200	14-17	66.1	5×114,3	44	N 12×1,25
Evalia	11-17	66.1	4×114,3	44	N 12×1,25
GT-R (R35)	07-16	66.1	5×114,3	44	N 12×1,25
Interstar	98-11	89.1	5×130	66	B 14×1,50
Juke (F15)	10-17	66.1	5×114,3	40	N 12×1,25
King Cab / Navara 2WD (D21)	85-97	100	6×139,7	40	N 12×1,25
King Cab / Navara 4WD (D21)	85-97	100	6×139,7	30	N 12×1,25
King Cab / Navara (D22)	97-05	100	6×139,7	40	N 12×1,25
King Cab / Navara (D40)	04-15	66.1	6×114,3	30	N 12×1,25
King Cab / Navara (D23)	14-17	66.1	6×114,3	45	N 12×1,25
Leaf	10-17	66.1	5×114,3	40	N 12×1,25
Maxima	94-08	66.1	5×114,3	40	N 12×1,25
Micra	93-03	59.1	4×100	45	N 12×1,25
Micra / Micra Cab	03-10	60.1	4×100	46	B 12×1,50
Micra	10-17	60.1	4×100	46	N 12×1,50
Murano (Z50)	02-08	66.1	5×114,3	38	N 12×1,25
Murano (Z51)	08-15	66.1	5×114,3	44	N 12×1,25
Murano (Z52)	08-15	66.1	5×114,3	48	N 12×1,25
Navara (D22)	97-05	100	6×139,7	40	N 12×1,25
Navara (D40)	04-15	66.1	6×114,3	30	N 12×1,25
Navara / NP300 Navara (D23)	14-17	66.1	6×114,3	44	N 12×1,25
Note (E11)	05-13	60.1	4×100	45	B 12×1,50
Note (E12)	13-17	60.1	4×100	40	N 12×1,25
NP300 Navara / Navara (D23)	14-17	66.1	6×114,3	44	N 12×1,25
NV200 4-bolt	09-17	66.1	4×114,3	44	N 12×1,25
NV200 5-bolt	09-17	66.1	5×114,3	44	N 12×1,25
NV400	10-17	89.1	5×130	66	B 14×1,50
Pathfinder (R50)	95-05	110	6×139,7	40	N 12×1,25
Pathfinder (R51)	05-12	66.1	6×114,3	30	N 12×1,25
Pathfinder (R52)	12-17	66.1	5×114,3	50	N 12×1,25
Patrol (Y60)	87-97	110	6×139,7	30	N 12×1,25
Patrol (Y61)	97-13	110	6×139,7	10	N 12×1,25
Patrol (Y62)	10-17	110	6×139,7	10	N 12×1,25
Pixo	08-13	54.1	4×100	45	N 12×1,25
Primastar	01-14	71.1	5×118	50	B 14×1,50
Primastar	14-17	66.1	5×114,3	50	B 14×1,50
Primera 4-bolt	90-02	66.1	4×114,3	45	N 12×1,25
Primera 5-bolt	02-08	66.1	5×114,3	40	N 12×1,25
Pulsar / C13 Pulsar	13-17	66.1	5×114,3	44	N 12×1,25
Qashqai (J10)	06-13	66.1	5×114,3	40	M 12×1,25
Qashqai (J11)	13-18	66.1	5×114,3	40	B 12×1,50
Quest (Gen 1-2)	93-02	66.1	5×114,3	45	N 12×1,25
Quest (Gen 3)	03-09	66.1	5×114,3	40	N 12×1,25
Quest (Gen 4)	10-17	66.1	5×114,3	50	N 12×1,25
Serena	91-02	66.1	5×114,3	40	N 12×1,25
Skyline (R32)	88-94	66.1	5×114,3	40	N 12×1,25
Skyline GT-R (R32)	88-94	66.1	5×114,3	30	N 12×1,25
Skyline (R33)	93-98	66.1	5×114,3	40	N 12×1,25
Skyline GT-R (R33)	93-98	66.1	5×114,3	30	N 12×1,25
Skyline (R34)	98-02	66.1	5×114,3	40	N 12×1,25
Skyline GT-R (R34)	98-02	66.1	5×114,3	30	N 12×1,25
Skyline (V35, CV35)	01-07	66.1	5×114,3	40	N 12×1,25
Skyline (V36, CV36, J50)	07-15	66.1	5×114,3	44	N 12×1,25
Skyline (HV37, ZV37)	15-17	66.1	5×114,3	46	N 12×1,25
Sunny (N14)	90-95	59.1	4×100	44	N 12×1,25
Sunny (B14)	94-99	59.1	4×100	40	N 12×1,25
Sunny (B15)	98-06	66.1	4×114,3	35	N 12×1,25
Terrano 2 / Terrano II	93-06	100	6×139,7	30	N 12×1,25
Tiida (C11, C12)	04-17	66.1	4×114,3	40	N 12×1,25
Titan (A60, H61)	03-17	78.1	6×139,7	25	N 12×1,25
X-Trail (T30. T31, T32)	01-17	66.1	5×114,3	40	N 12×1,25

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
88 / LSS / Regency (FWD, gen 9-10)	86-99	70.3	5×115	47	N 12×1,50
98 (FWD, gen 11-12)	85-96	70.3	5×115	47	N 12×1,50
Achieva	92-98	57.1	5×100	45	N 12×1,50
Alero	98-04	70.3	5×115	42	N 12×1,50
Aurora (Gen 1-2)	95-03	70.3	5×115	42	N 12×1,50
Bravada (Gen 1-2)	91-01	70.3	5×120,65	12	N 12×1,50
Bravada (Gen 3)	02-04	78.3	6×127	50	N 12×1,50
Custom Cruiser (Gen 3)	91-92	78.3	5×127	12	N 12×1,50
Cutlass Calais	84-92	57.1	5×100	45	N 12×1,50
Cutlass Ciera	82-96	57.1	5×100	45	N 12×1,50
Cutlass Ciera Cruiser	82-96	70.3	5×115	42	N 12×1,50
Cutlass Supreme (Gen 5)	88-98	70.3	5×115	42	N 12×1,50
Firenza	82-89	57.1	5×100	45	N 12×1,50
Full-size cars (RWD)	77-85	70.3	5×120,65	5	N 7/16"-RH
Full-size cars (RWD with 403-engine)	64-92	78.3	5×127	12	N 1/2"-RH
Intrigue	97-03	70.3	5×115	42	N 12×1,50
Mid-size cars (RWD)	64-87	70.3	5×120,65	5	N 12×1,50
Omega (Gen 3)	80-84	57.1	5×100	42	N 12×1,50
Silhouette (Gen 1)	90-96	70.3	5×115	40	N 12×1,50
Silhouette (Gen 2)	97-05	70.3	5×115	45	N 12×1,50
Toronado (FWD, gen 3)	79-85	70.3	5×120,65	42	N 12×1,50
Toronado (FWD, gen 4)	86-92	70.3	5×115	42	N 12×1,50

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
Adam / Adam Rocks	12-17	56.6	4×100	38	B 12×1,50
Adam S / Sportstar	15-17	65.1	5×110	44	B 12×1,50
Agila	99-03	54.1	4×100	44	N 12×1,25
Agila	03-08	54.1	4×100	44	B 12×1,25
Agila	08-15	54.1	4×100	44	B 12×1,50
Ampera / Chevrolet Volt	11-17	70.3	5×115	42	N 12×1,50
Antara	06-17	70.3	5×115	45	N 12×1,50
Ascona (A, B)	70-81	57.1	4×100	38	N 12×1,50
Ascona (C)	81-88	56.6	4×100	49	B 12×1,50
Astra (F)	91-98	56.6	4×100	49	B 12×1,50
Astra 4-bolt (G)	98-04	56.6	4×100	40	B 12×1,50
Astra 5-bolt (G)	98-04	65.1	5×110	48	B 12×1,50
Astra 4-bolt (H)	04-09	56.6	4×100	40	B 12×1,50
Astra 5-bolt (H)	04-09	65.1	5×110	36	B 12×1,50
Astra (J)	09-15	56.6	5×105	40	B 12×1,50
Astra 1.6 Turbo, 1.6 diesel, 1.7 diesel, 2.0 diesel (J)	09-15	70.3	5×115	42	B 12×1,50
Astra (K)	15-17	56.6	5×105	40	N 12×1,50
Calibra 4-bolt	90-97	56.6	4×100	49	B 12×1,50
Calibra 5-bolt	90-97	65.1	5×110	49	B 12×1,50
Campo (Gen 3)	88-03	110	6×139,7	36	N 12×1,50
Cascada	13-17	70.3	5×115	42	N 12×1,50
Combo (C)	01-11	56.1	4×100	49	B 12×1,50
Combo (D)	11-17	58.1	5×98	40	B 12×1,25
Corsa / Corsa Combo (A, B)	82-01	56.6	4×100	49	B 12×1,50
Corsa (C)	00-06	56.6	4×100	49	B 12×1,50
Corsa Combo 4-bolt (C)	01-11	56.6	4×100	49	B 12×1,50
Corsa Combo 5-bolt (C)	01-11	56.6	5×110	49	B 12×1,50
Corsa 4-bolt (D, E)	06-17	56.6	4×100	40	B 12×1,50
Corsa 5-bolt (D, E)	06-17	65.1	5×110	36	B 12×1,50
Crossland X	17-18	65.1	4×108	21	B 12×1,25
Frontera (Gen 1-2)	89-04	110	6×139,7	38	N 12×1,50
Grandland X	17-18	65.1	5×108	44	B 12×1,25
GT (roadster)	06-10	65.1	5×110	50	N 12×1,50
Insignia (gen 1)	08-17	67.1	5×120	40	M 14×1,50
Insignia (gen 2)	17-18	70.3	5×115	45	M 12×1,50
Kadett (C)	73-79	57.1	4×100	38	N 12×1,50
Kadett (D, E)	79-92	56.6	4×100	49	B 12×1,50
Karl	14-17	56.6	4×100	47	N 12×1,50
Manta (A, B)	75-90	57.1	4×100	38	N 12×1,50
Meriva 4-bolt (A)	03-10	56.6	4×100	38	B 12×1,50
Meriva 5-bolt (A)	03-10	65.1	5×110	49	B 12×1,50
Meriva 5-bolt (B)	10-17	65.1	5×110	36	B 12×1,50
Mokka / Mokka X	12-17	56.6	5×105	38	N 12×1,50
Monterey (Gen 2)	92-02	110	6×139,7	37	N 12×1,50
Movano	98-17	89.1	5×130	65	B 14×1,50
Omega (A, B)	86-03	65.1	5×110	33	B 12×1,50
Rekord (D, E)	72-87	56.6	4×100	44	B 12×1,50
Senator (A)	78-87	65.1	5×110	39	B 12×1,50
Senator (B)	87-94	65.1	5×110	39	B 12×1,50
Signum	03-08	65.1	5×110	36	B 12×1,50
Sintra	96-99	70.3	5×115	50	N 12×1,50
Speedster	00-05	65.1	5×110	36	N 12×1,50
Tigra (A)	94-00	56.6	4×100	49	B 12×1,50
Tigra (B)	04-09	56.6	4×100	38	B 12×1,50
Vectra 4-bolt (A)	88-95	56.6	4×100	49	B 12×1,50
Vectra 5-bolt (A)	88-95	65.1	5×110	49	B 12×1,50
Vectra 4-bolt (B)	95-02	56.6	4×100	40	B 12×1,50
Vectra 5-bolt (B)	95-02	65.1	5×110	49	B 12×1,50
Vectra (C)	02-08	65.1	5×110	35	B 12×1,50
Vivaro (X83)	01-14	71.1	5×118	50	B 14×1,50
Vivaro (X82)	14-17	66.1	5×114,3	50	B 14×1,50
Zafira (A)	99-05	65.1	5×110	48	B 12×1,50
Zafira (B)	05-11	65.1	5×110	36	B 12×1,50
Zafira Family	11-14	65.1	5×110	40	B 12×1,50
Zafira Tourer	11-17	70.3	5×115	40	B 12×1,50

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
1007	05-09	65.1	4×108	25	B 12×1,25
106 (3-bolt)	92-04	55.1	3×98	16	B 12×1,25
106 (4-bolt)	92-04	65.1	4×108	20	B 12×1,25
107	05-14	54.1	4×100	40	B 12×1,50
108	14-16	54.1	4×100	35	B 12×1,50
2008	13-16	65.1	4×108	20	B 12×1,25
205	84-97	65.1	4×108	20	B 12×1,25
206, 206 cab, 206 SW	98-10	65.1	4×108	28	B 12×1,25
207, 207 cab, 207 SW	06-16	65.1	4×108	28	B 12×1,25
208	12-16	65.1	4×108	28	B 12×1,25
208 GTI	12-16	65.1	4×108	20	B 12×1,25
3008	09-16	65.1	4×108	28	B 12×1,25
3008 SUV	17-17	65.1	5×108	43	B 12×1,25
306	93-02	65.1	4×108	20	B 12×1,25
307, 307 cab, 307 SW	01-08	65.1	4×108	28	B 12×1,25
308 4-bolt (Gen 1, T7)	07-13	65.1	4×108	28	B 12×1,25
308 5-bolt (Gen 2, T9)	13-16	65.1	5×108	43	B 12×1,25
309	85-93	65.1	4×108	20	B 12×1,25
4007	07-12	67.1	5×114,3	38	N 12×1,50
4008	12-16	67.1	5×114,3	38	N 12×1,50
405	87-95	65.1	4×108	20	B 12×1,25
406	95-04	65.1	4×108	20	B 12×1,25
406 Coupé	96-05	65.1	4×108	12	B 12×1,25
407	04-10	65.1	5×108	44	B 12×1,25
5008	09-16	65.1	4×108	28	B 12×1,25
508	11-16	65.1	5×108	45	B 12×1,25
605	89-99	65.1	5×108	45	B 12×1,25
607	00-10	65.1	5×108	40	B 12×1,25
806	94-02	58.1	5×98	32	B 14×1,50
807	02-14	58.1	5×98	32	B 14×1,50
Bipper, Bipper Tepee	08-16	58.1	4×98	44	B 12×1,25
Boxer (small chassi, 15-inch wheel)	94-16	71.1	5×118	68	B 14×1,50
Boxer (large chassi, 16-inch wheel)	94-16	78.1	5×130	68	B 16×1,50
Expert (Gen 1)	96-07	58.1	5×98	31	B 14×1,50
Expert (Gen 2)	07-16	65.1	5×108	39	B 12×1,25
iOn	10-16	56.1	4×100	35	N 12×1,50
Partner (Gen 1)	97-08	65.1	4×108	18	B 12×1,25
Partner Tepee (Gen 2)	08-16	65.1	4×108	28	B 12×1,25
RCZ	10-16	65.1	5×108	28	B 12×1,25
Traveller	16-16	65.1	5×108	45	B 12×1,25

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
Aztek (from Breaking Bad!)	01-05	70.3	5×115	52	N 12×1,50
Bonneville (Gen 4)	64-70	–	5×127	0	–
Bonneville (Gen 8-9)	87-99	70.3	5×115	45	N 12×1,50
Bonneville (Gen 10)	00-05	70.3	5×115	52	N 12×1,50
Fiero	84-88	57.1	5×100	40	N 12×1,50
Firebird (Gen 1-3)	67-92	70.3	5×120,65	15	N 12×1,50
Firebird (Gen 4)	93-02	70.3	5×120,65	45	N 12×1,50
G5 (4-bolt)	05-10	56.6	4×100	42	N 12×1,50
G5 (5-bolt)	05-10	65.1	5×110	42	N 12×1,50
G6	05-10	65.1	5×110	40	N 12×1,50
G8	08-09	66.5	5×120	48	N 14×1,50
Grand Am (Gen 1-2)	73-80	70.3	5×120,65	0	N 12×1,50
Grand Am (Gen 3)	85-91	57.1	5×100	45	N 12×1,50
Grand Am (Gen 4)	92-98	57.1	5×100	42	N 12×1,50
Grand Am (Gen 5)	99-05	70.3	5×115	42	N 12×1,50
Grand Prix (Gen 1)	62-68	–	5×127	0	–
Grand Prix (Gen 2-4)	69-87	70.3	5×120,65	0	N 12×1,50
Grand Prix (Gen 5-7)	88-08	70.3	5×115	52	N 12×1,50
GTO (Gen 1-3)	64-74	70.3	5×120,65	0	N 12×1,50
GTO (Gen 4)	04-06	69.5	5×120	48	N 12×1,50
Le Mans (Gen 1)	61-63	–	5×114,3	0	–
Le Mans (Gen 2-5)	64-81	70.3	5×120,65	0	N 12×1,50
Phoenix RWD (Gen 1)	77-79	70.3	5×120,65	0	N 12×1,50
Phoenix FWD (Gen 2)	80-84	70.3	5×120,65	35	N 12×1,50
Montana, Trans Sport (Gen 1)	97-05	70.3	5×115	45	N 12×1,50
Montana SV6 (5-bolt, gen 2)	05-09	70.3	5×115	52	N 12×1,50
Montana SV6 (6-bolt, gen 2)	05-09	70.3	6×115	52	N 12×1,50
Solstice	06-10	65.1	5×110	52	B 12×1,50
Sunbird (Gen 3)	88-94	57.1	5×100	40	N 12×1,50
Sunfire	95-05	57.1	5×100	45	N 12×1,50
Tempest (Gen 1)	61-63	–	5×114,3	0	–
Tempest (Gen 2)	64-70	70.3	5×120,65	0	N 12×1,50
Trans Am (Gen 1-3)	69-92	70.3	5×120,65	15	N 12×1,50
Trans Am (Gen 4)	93-02	70.3	5×120,65	45	N 12×1,50
Trans Sport (Gen 1)	90-96	70.3	5×115	40	N 12×1,50
Trans Sport (Gen 2)	97-99	70.3	5×115	45	N 12×1,50
Ventura (Gen 1)	60-69	–	5×127	0	–
Ventura (Gen 2)	71-77	70.3	5×120,65	0	N 12×1,50
Vibe (Gen 1-2)	02-10	54.1	5×100	40	N 12×1,50
Vibe AWD, GT (Gen 2)	09-10	54.1	5×114,3	40	N 12×1,50

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
911 (all models)	63-16	71.6 (certain models have 84.0!)	5×130	23 (without ABS), 57 (with ABS)	N 14×1,50 (certain models have only one large center bolt!)
918 Spyder	14-15	71.6	5×130	57	N 14×1,50
924	76-88	57.1	4×108	23	B 14×1,50
928	78-95	71.6	5×130	50	N 14×1,50
944 without ABS	83-86	71.6	5×130	25	N 14×1,50
944 with ABS	87-91	71.6	5×130	50	N 14×1,50
Boxster (986)	97-04	71.6	5×130	53	B 14×1,50
Boxster (987)	05-12	71.6	5×130	55	B 14×1,50
Boxster (981, 718)	12-17	71.6	5×130	57	B 14×1,50
Carrera GT	04-07	71.6	5×130	57	N 14×1,50
Cayenne (9PA, 92A)	03-18	71.6	5×130	53	B 14×1,50
Cayenne (3rd gen PO536)	18-20	66.5	5×112	32	B 14×1,50
Cayman (987)	05-12	71.6	5×130	55	B 14×1,50
Cayman (981)	12-16	71.6	5×130	57	B 14×1,50
Macan (95B)	14-19	66.5	5×112	26	B 14×1,50
Panamera (Gen 1-2, 970/971)	10-20	71.6	5×130	62	B 14×1,50

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
19	88-96	60.1	4×100	36	B 12×1,50
21 (4-bolt)	86-95	60.1	4×100	40	B 12×1,50
21 (5-bolt)	86-95	60.1	5×108	40	B 12×1,50
Avantime	01-03	60.1	5×108	42	B 14×1,50
Captur	13-17	60.1	4×100	40	B 12×1,50
Clio I	90-98	60.1	4×100	36	B 12×1,50
Clio I Sport/RS	90-98	60.1	4×100	60	B 12×1,50
Clio II	98-05	60.1	4×100	42	B 12×1,50
Clio II Sport/RS	98-05	60.1	4×100	60	B 12×1,50
Clio III	05-12	60.1	4×100	43	B 12×1,50
Clio III Sport/RS	05-12	60.1	4×100	63	B 12×1,50
Clio IV	12-16	60.1	4×100	44	B 12×1,50
Clio IV Sport/RS	12-16	60.1	4×100	55	B 12×1,50
Espace II	91-97	60.1	5×108	42	B 14×1,50
Espace III, IV	97-15	60.1	5×108	50	B 14×1,50
Espace V	15-17	66.1	5×114,3	37	B 14×1,50
Kadjar	15-17	66.1	5×114,3	40	B 12×1,50
Kangoo I (incl. Trekka 4WD)	97-08	60.1	4×100	36 for 13 inch, 42 for 15 inch	B 12×1,50
Kangoo II (4-bolt, short wheelbase)	08-16	60.1	4×100	44	B 12×1,50
Kangoo II (5-bolt, long wheelbase)	08-16	60.1	5×108	44	B 12×1,50
Koleos	08-16	66.1	5×114,3	42	N 12×1,25
Laguna I (4-bolt)	94-01	60.1	4×100	50	B 12×1,50
Laguna I (5-bolt)	94-01	60.1	5×108	50	B 14×1,50
Laguna II	01-08	60.1	5×108	50	B 12×1,50
Laguna III	08-15	66.1	5×114,3	47	B 14×1,25
Master (15-inch, gen 1)	80-97	130.1	5×170	66	B 14×1,50
Master (16-inch, gen 2-3)	97-16	89.1	5×130	66	B 14×1,50
Mégane I	95-02	60.1	4×100	42	B 12×1,50
Mégane II (4-bolt)	02-08	60.1	4×100	45	B 12×1,50
Mégane II (5-bolt)	02-08	60.1	5×108	49	B 12×1,50
Mégane III	08-16	66.1	5×114,3	47	B 12×1,50
Modus, Grand Modus	04-12	60.1	4×100	42	B 12×1,50
Scénic I / Mégane Scénic	96-03	60.1	4×100	42	B 12×1,50
Scénic, Grand Scénic II	03-09	60.1	4×100	48	B 12×1,50
Scénic, Grand Scénic III	09-16	66.1	5×114,3	48	B 12×1,50
Scénic Conquest	07-09	60.1	5×108	36	B 14×1,50
Scénic RX4	00-03	60.1	5×108	36	B 14×1,50
Talisman	15-17	66.1	5×114,3	37	B 12×1,50
Trafic (Gen 1)	81-01	60.1	4×160	58	B 14×1,50
Trafic (Gen 2)	01-14	71.1	5×118	50	B 14×1,50
Trafic (Gen 3)	14-17	66.1	5×114,3	50	B 14×1,50
Twingo I	93-07	60.1	4×100	36	B 12×1,50
Twingo II	07-14	60.1	4×100	30	B 12×1,50
Twingo III	14-17	60.1	4×100	38	B 12×1,50
Twizy	12-17	60.1	3×100	23	B 12×1,50
Wind	10-13	60.1	4×100	54	B 12×1,50
Zoe	12-17	60.1	4×100	40	B 12×1,50

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
200 Series (Mk1-Mk3)	84-00	56.1	4×100	45	N 12×1,50
25	00-06	56.1	4×100	45	N 12×1,50
400 Series (Mk1-Mk2)	90-00	56.1	4×100	45	N 12×1,50
45	90-06	56.1	4×100	45	N 12×1,50
600 Series	93-99	64.1	4×114,3	50	N 12×1,50
75	99-06	56.1	5×100	50	B 14×1,50
800 Series	86-99	64.1	4×114,3	50	N 12×1,50
CityRover	03-06	56.1	4×100	45	N 12×1,50
Streetwise	03-06	56.1	4×100	45	N 12×1,50

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
90	84-87	71.5	4×114,3	45	N 1/2" UNF
92	50-57	–	5×170	–	B
93	57-60	–	5×170	–	B
95	60-78	–	5×170	–	B
96	60-80	–	5×170	–	B
99	69-84	71.5	4×114,3	45	N 1/2" UNF
900	79-88	71.5	4×114,3	40	N 1/2" UNF
900	88-93	65.1	4×108	39	B 14×1,50
900	94-98	65.1	5×110	40	B 12×1,50
9000	84-98	65.1	4×108	33	B 14×1,50
9-2X	05-06	56.1	5×100	50	N 12×1,25
9-3 (Gen 1)	98-02	65.1	5×110	49	B 12×1,50
9-3 (Gen 2)	03-11	65.1	5×110	41	B 12×1,50
9-4X	11-11	66.9	6×120	53	N 12×1,50
9-5 (Gen 1)	97-10	65.1	5×110	49	B 12×1,50
9-5 (Gen 2)	10-12	67.1	5×120	40	M 14×1,50
9-7X	05-09	78.1	6×127	35	N 12×1,50
Sonett I / 94	55-57	–	5×170	–	B
Sonett II / 97	66-69	–	5×170	–	B
Sonett III / 97	70-74	–	5×170	–	B

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
Alhambra (Gen 1)	96-10	57.1	5×112	55	B 14×1,50
Alhambra (Gen 2)	10-16	57.1	5×112	40	B 14×1,50
Altea, Altea XL/Freetrack	04-16	57.1	5×112	50	B 14×1,50
Arosa	97-05	57.1	4×100	42	B 12×1,50
Ateca	16-18	57.1	5×112	44	B 14×1,50
Córdoba (4-bolt, gen 1)	93-02	57.1	4×100	42	B 12×1,50
Córdoba (5-bolt, gen 1)	93-02	57.1	4×100	38	B 12×1,50
Córdoba (Gen 2)	02-09	57.1	5×100	38	B 14×1,50
Exeo	09-13	57.1	5×112	42	B 14×1,50
Ibiza (Gen 1)	84-93	58.1	4×98	44	B 12×1,25
Ibiza (Gen 2)	93-02	57.1	4×100	42	B 12×1,50
Ibiza (Gen 3-5)	02-18	57.1	5×100	40	B 14×1,50
Inca	96-03	57.1	4×100	42	B 12×1,50
León, León Cupra (Gen 1)	99-06	57.1	5×100	38	B 14×1,50
León, León Cupra (Gen 2-3)	05-16	57.1	5×112	50	B 14×1,50
Mii	11-16	57.1	4×100	35	B 12×1,50
Toledo (Gen 1)	91-99	57.1	4×100	42	B 12×1,50
Toledo (Gen 2)	99-04	57.1	5×100	38	B 14×1,50
Toledo (Gen 3)	04-09	57.1	5×112	50	B 14×1,50
Toledo (Gen 4)	12-16	57.1	5×100	45	B 14×1,50

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
Citigo	12-16	57.1	4×100	35	B 12×1,50
Fabia, Fabia Scout (Gen 1-3)	00-16	57.1	5×100	42	B 14×1,50
Favorit, Forman, Pick-up	87-92	57.1	4×100	38	B 12×1,50
Favorit, Forman, Pick-up	92-95	57.1	4×100	45	B 12×1,50
Felicia	95-01	57.1	4×100	38	B 12×1,50
Karoq	17-18	57.1	5×112	42	B 14×1,50
Kodiaq	17-18	57.1	5×112	40	B 14×1,50
Octavia	97-05 (Mk1)	57.1	5×100	38	B 14×1,50
Octavia, Octavia Scout (Mk2, Mk3)	05-16	57.1	5×112	47	B 14×1,50
Pick-up / Pickup (Felicia Pick-up)	95-01	57.1	4×100	38	B 12×1,50
Praktik	07-15	57.1	5×100	42	B 14×1,50
Rapid	12-16	57.1	5×100	45	B 14×1,50
Roomster, Roomster Scout	06-15	57.1	5×100	42	B 14×1,50
Superb (B5/3U)	02-08	57.1	5×112	38	B 14×1,50
Superb (B6/3T)	08-15	57.1	5×112	47	B 14×1,50
Superb (B8/3V)	15-16	57.1	5×112	42	B 14×1,50
Yeti	10-16	57.1	5×112	45	B 14×1,50

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
4-bolt	–	57.1	4×100	30	–
5-bolt	–	66.5	5×112	30	–

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
1300	97	–	5×112	30	–

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
Forfour (Gen 1)	04-06	67.1	4×114,3	46	N 12×1,50
Forfour (Gen 2)	14-17	60.1	4×100	38 front, 36 rear	B 12×1,50
Fortwo (Gen 1-2)	98-13	57.1	3×112	24 front, 22 rear	B 12×1,50
Fortwo (Gen 3)	14-17	60.1	4×100	38 front, 36 rear	B 12×1,50
Roadster	03-06	57.1	3×112	24	B 12×1,50

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
Actyon (Gen 1)	06-10	84.1	5×130	43	N 14×1,50
Actyon (Gen 2)	10-16	66.5	5×112	43	B 12×1,50
Korando (Gen 2)	97-06	110	6×139,7	15	N 12×1,50
Korando (Gen 3)	10-16	66.5	5×112	43	B 12×1,50
Kyron	06-16	84.1	5×130	43	N 14×1,50
Musso	93-05	110	6×139,7	15	N 12×1,50
Rexton (Gen 1)	01-06	102	6×139,7	43	N 12×1,50
Rexton (Gen 2)	06-12	84.1	5×130	43	N 14×1,50
Rodius	05-16	84.1	5×130	43	B 14×1,50
Tivoli	15-16	66.5	5×112	43	B 12×1,50

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
BRZ	12-16	56.1	5×100	48	N 12×1,25
Forester	98-16	56.1	5×100	55	N 12×1,25
Impreza	93-16	56.1	5×100	55	N 12×1,25
Impreza WRX STI	94-05	56.1	5×100	53	N 12×1,25
Impreza WRX STI / WRX STI	05(facelift)-16	56.1	5×114,3	53	N 12×1,25
Justy (Gen 1)	89-95	59.1	4×100	45	N 12×1,25
Justy (Gen 2)	95-03	60.1	4×114,3	45	N 12×1,25
Justy (Gen 3)	03-07	54.1	4×100	45	B 12×1,50
Justy (Gen 4)	07-11	54.1	4×100	40	N 12×1,50
Legacy	90-14	56.1	5×100	55	N 12×1,25
Levorg	15-16	56.1	5×100	55	N 12×1,25
Outback	96-14	56.1	5×100	48	N 12×1,25
Outback	15-16	56.1	5×114,3	55	N 12×1,25
Trendy / Justy (Gen 1)	84-88	59.1	4×100	45	N 12×1,25
Trezia	11-16	54.1	5×100	45	N 12×1,50
Tribeca	06-14	56.1	5×114,3	55	N 12×1,25
XV	12-17	56.1	5×100	48	M 12×1,25
XV	18-19	56.1	5×100	55	M 12×1,25

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
Alto	94-02	60.1	4×114,3	45	N 12×1,25
Alto	02-14	54.1	4×100	45	N 12×1,25
Baleno	95-02	54.1	4×100	45	N 12×1,25
Baleno	15-17	54.1	4×100	40	N 12×1,25
Celerio	14-17	54.1	4×100	45	N 12×1,25
Grand Vitara	98-05	108	5×139,7	10	N 12×1,25
Grand Vitara	05-14	60.1	5×114,3	45	N 12×1,25
Ignis	00-03	54.1	4×100	45	N 12×1,25
Ignis	03-08	54.1	4×100	45	B 12×1,50
Ignis	16-18	54.1	4×100	40	N 12×1,25
Jimny / Samurai	81-98	108	5×139,7	5	N 12×1,25
Jimny / Samurai	98-17	108	5×139,7	5	N 12×1,25
Kizashi	09-15	60.1	5×114,3	45	N 12×1,25
Liana	01-07	54.1	4×100	45	N 12×1,25
LJ80 / Jimny	70-81	108	5×139,7	10	N 12×1,25
Reno	04-09	57.1	4×114,3	40	N 12×1,50
S-Cross / SX4 S-Cross	13-17	60.1	5×114,3	50	B 12×1,50
Samurai / Jimny	81-98	108	5×139,7	5	N 12×1,25
Samurai / Jimny	98-17	108	5×139,7	5	N 12×1,25
SJ 410/413	81-98	108	5×139,7	10	N 12×1,25
Splash	08-14	54.1	4×100	45	B 12×1,50
Swift	88-04	60.1	4×114,3	45	N 12×1,25
Swift	05-10	54.1	4×100	40	B 12×1,50
Swift Sport	05-10	60.1	5×114,3	40	B 12×1,50
Swift	10-17	54.1	4×100	40	B 12×1,50
Swift AWD	10-17	54.1	4×100	40	N 12×1,25
Swift Sport	10-17	60.1	5×114,3	40	B 12×1,50
SX4 / SX4 S-Cross (Gen 1-2)	06-17	60.1	5×114,3	50	B 12×1,50
Vitara / Escudo	88-06	108	5×139,7	25	N 12×1,25
Vitara / Escudo	06-14	60.1	5×114,3	45	B 12×1,50
Vitara / Escudo	15-17	60.1	5×114,3	50	B 12×1,50
Wagon R	93-17	54.1	4×100	45	B 12×1,50

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
Roadster	08-12	65.1	5×110	25	N 12×1,50
Model S	12-16	64.1	5×120	40	N 14×1,50
Model X	16-16	64.1	5×120	40	N 14×1,50

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
4Runner (N120, N130)	89-95	106.1	6×139,7	30	N 12×1,50
4Runner (N180)	96-02	106.1	6×139,7	12	N 12×1,50
Auris (E150, E180)	07-16	60.1	5×114,3	46	N 12×1,50
Avensis (T220, T250)	98-08	54.1	5×100	40	N 12×1,50
Avensis (T270)	09-16	60.1	5×114,3	46	N 12×1,50
Avensis 2.2 diesel and 2.4 gasoline (T250)	05-08	60.1	5×114,3	46	N 12×1,50
Avensis Verso compact minivan (T250)	01-05	60.1	5×114,3	46	N 12×1,50
Aygo (AB10)	06-14	54.1	4×100	40	B 12×1,50
Aygo (AB40)	15-16	54.1	4×100	35	B 12×1,50
Camry	87-91	54.1	5×100	40	N 12×1,50
Camry	92-16	60.1	5×114,3	46	N 12×1,50
Carina 4-bolt (T170)	88-92	54.1	4×100	40	N 12×1,50
Carina 5-bolt (T170)	88-92	54.1	5×100	40	N 12×1,50
Carina (T190)	92-97	54.1	5×100	40	N 12×1,50
Celica 4-bolt (T160)	86-89	54.1	4×100	40	N 12×1,50
Celica 4-bolt (T180)	90-93	54.1	4×100	40	N 12×1,50
Celica 5-bolt (T160)	86-89	54.1	5×100	40	N 12×1,50
Celica 5-bolt (T180)	90-93	54.1	5×100	40	N 12×1,50
Celica (T200, T230)	94-07	54.1	5×100	40	N 12×1,50
C-HR	16-18	60.1	5×114,3	45	N 12×1,50
Corolla	83-07	54.1	4×100	40	N 12×1,50
Corolla Sédan (E140, E150 Europe)	07-13	60.1	5×114,3	46	N 12×1,50
Corolla Verso compact minivan (E120, E130)	01-04	54.1	4×100	40	N 12×1,50
Corolla Verso compact minivan (E120, E130)	04-11	60.1	5×114,3	46	N 12×1,50
FJ Cruiser	06-14	106.1	6×139,7	18	N 12×1,50
GT86	12-16	56.1	5×100	48	N 12×1,25
HiAce	-95	67.1	5×114,3	30	N 12×1,50
HiAce	95-11	106.1	6×139,7	30	N 12×1,50
Highlander (XU20, XU40, XU50)	01-16	60.1	5×114,3	35	N 12×1,50
HiLux 2WD (N80, N90, N100, N110)	89-97	67.1	5×114,3	35	N 12×1,50
HiLux 2WD (N140, N150, N160, N170)	97-05	67.1	5×114,3	35	N 12×1,50
HiLux 2WD (N140, N150, N160, N170)	06-16	67.1	5×114,3	50	N 12×1,50
HiLux 4WD (N80, N90, N100, N110)	89-97	106.1	6×139,7	30	N 12×1,50
HiLux 4WD (N140, N150, N160, N170)	97-05	106.1	6×139,7	12	N 12×1,50
HiLux 4WD (N140, N150, N160, N170)	06-16	106.1	6×139,7	30	N 12×1,50
iQ (AJ10)	09-16	54.1	5×100	46	N 12×1,50
Land Cruiser (J60, J70, J90, J120, J150)	–	106.1	6×139,7	30	N 12×1,50
Land Cruiser (J80)	–	106.1	6×139,7	12	N 12×1,50
Land Cruiser (J100, J200)	–	110	5×150	30	N 14×1,50
Mirai	15-18	60.1	5×114,3	39	N 12×1,50
MR2 (W20)	90-99	60.1	5×114,3	46	N 12×1,50
MR2 (W30)	00-07	54.1	4×100	46	N 12×1,50
Picnic	95-01	60.1	5×114,3	46	N 12×1,50
Previa (XR10, XR20, XR30, XR40, XR50)	90-16	60.1	5×114,3	46	N 12×1,50
Prius (XW10)	01-03	54.1	4×100	46	N 12×1,50
Prius (XW20, XW30, XW50)	04-18	54.1	5×100	46	N 12×1,50
Prius+ (plus)	12-16	60.1	5×114,3	46	N 12×1,50
ProAce	13-16	65.1	5×108	42	B 12×1,25
RAV4 (XA10, XA20, XA30, XA40)	95-16	60.1	5×114,3	46	N 12×1,50
Sequoia I	01-07	106.1	6×139,7	12	N 12×1,50
Sequoia II	08-16	110	5×150	60	N 14×1,50
Supra (MK3/MKIII)	86-92	60.1	5×114,3	37	N 12×1,50
Supra (MK4/MKIV)	93-98	60.1	5×114,3	50	N 12×1,50
Tundra I	00-06	106.1	6×139,7	12	N 12×1,50
Tundra II	07-16	110	5×150	60	N 14×1,50
Urban Cruiser (XP110)	08-14	54.1	5×100	46	N 12×1,50
Verso (R20)	09-16	60.1	5×114,3	40	N 12×1,50
Verso-S (NCP120)	11-16	54.1	5×100	46	N 12×1,50
Yaris (XP10, XP90)	99-11	54.1	4×100	46	N 12×1,50
Yaris (XP130)	12-16	54.1	4×100	40	N 12×1,50
Yaris Verso compact minivan (XP10)	00-06	54.1	4×100	40	N 12×1,50

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
Amarok	11-16	65.1	5×120	51	B 14×1,50
Arteon	17-18	57.1	5×112	40	B 14×1,50
Beetle (5-bolt)	38-67	–	5×205	–	–
Beetle (4-bolt)	67-03	–	4×130	–	–
Beetle	12-16	57.1	5×112	48	B 14×1,50
Bora	98-05	57.1	5×100	38	B 14×1,50
Caddy	79-96	57.1	4×100	47	B 12×1,50
Caddy	96-04	57.1	4×100	47	B 12×1,50
Caddy	05-16	57.1	5×112	47	B 14×1,50
Caddy Life	05-16	57.1	5×112	47	B 14×1,50
Corrado	89-96	57.1	4×100	35	B 12×1,50
Corrado VR6	92-96	57.1	5×100	43	B 14×1,50
EOS	06-16	57.1	5×112	42	B 14×1,50
Fox	05-11	57.1	5×100	43	B 14×1,50
Golf 1	74-83	57.1	4×100	45	B 12×1,50
Golf 2	83-92	57.1	4×100	45	B 12×1,50
Golf 3 (4-bolt)	91-99	57.1	4×100	45	B 12×1,50
Golf 3 (5-bolt)	91-99	57.1	5×100	38	B 14×1,50
Golf 4	97-06	57.1	5×100	38	B 14×1,50
Golf 5	03-09	57.1	5×112	47	B 14×1,50
Golf 6	08-13	57.1	5×112	47	B 14×1,50
Golf 7	13-16	57.1	5×112	42	B 14×1,50
Jetta	80-84	57.1	4×100	38	B 12×1,50
Jetta	84-92	57.1	4×100	38	B 12×1,50
Jetta	05-10	57.1	5×112	47	B 14×1,50
Jetta	11-16	57.1	5×112	47	B 14×1,50
Lupo	99-05	57.1	4×100	43	B 12×1,50
New Beetle	98-11	57.1	5×100	38	B 14×1,50
Passat	-96	57.1	4×100	38	B 14×1,50
Passat	-96	57.1	5×100	35	B 14×1,50
Passat	83-96	57.1	4×100	38	B 14×1,50
Passat	93-96	57.1	5×100	35	B 14×1,50
Passat	96-00	57.1	5×112	45	B 14×1,50
Passat	00-05	57.1	5×112	37	B 14×1,50
Passat (3C)	05-10	57.1	5×112	42	B 14×1,50
Passat (3C)	05-14	57.1	5×112	47	B 14×1,50
Passat (3C)	14-	57.1	5×112	41	B 14×1,50
Passat (3C) Alltrack	12-15	57.1	5×112	42	B 14×1,50
Passat (3C) Alltrack	15-	57.1	5×112	41	B 14×1,50
Passat (3C) sedan	10-14	57.1	5×112	42	B 14×1,50
Passat (3C) Sedan	14-	57.1	5×112	41	B 14×1,50
Passat (3C) Variant	05-10	57.1	5×112	42	B 14×1,50
Passat (3C) Variant	10-14	57.1	5×112	42	B 14×1,50
Passat (3C) Variant	14-	57.1	5×112	41	B 14×1,50
Passat (3CC) CC	08-11	57.1	5×112	42	B 14×1,50
Passat 3B	98-00	57.1	5×112	45	B 14×1,50
Passat 3BG	01-05	57.1	5×112	37	B 14×1,50
Passat Variant	96-00	57.1	5×112	45	B 14×1,50
Passat W8	01-05	57.1	5×112	45	B 14×1,50
Phaeton	03-16	57.1	5×112	42	B 14×1,50
Polo	75-80	57.1	4×100	38	B 12×1,50
Polo	81-94	57.1	4×100	38	B 12×1,50
Polo	95-00	57.1	4×100	38	B 12×1,50
Polo	01-08	57.1	5×100	43	B 14×1,50
Polo	09-16	57.1	5×100	43	B 14×1,50
Routan	09-14	71.6	5×127	40	N 12×1,50
Scirocco	74-81	57.1	4×100	38	B 12×1,50
Scirocco	81-92	57.1	4×100	38	B 12×1,50
Scirocco	08-16	57.1	5×112	42	B 14×1,50
Sharan	95-09	57.1	5×112	45	B 14×1,50
Sharan	10-16	57.1	5×112	45	B 14×1,50
T-Roc	17-20	57.1	5×112	44	B 14×1,50
Tiguan (5 N)	07-16	57.1	5×112	33	B 14×1,50
Tiguan (5 N)	16-	57.1	5×112	40	B 14×1,50
Tiguan (5 N) Allspace	17-	57.1	5×112	40	B 14×1,50
Transporter T1 / Folkabuss	50-67	57.1	5×112	40	B 14×1,50
Transporter T2 / Folkabuss	68-79	57.1	5×112	40	B 14×1,50
Transporter T3	79-90	66.5	5×112	40	B 14×1,50
Transporter T4	90-03	57.1	5×112	50	B 14×1,50
Transporter T5	03-16	65.1	5×120	50	B 14×1,50
Transporter T6	15-16	65.1	5×120	51	B 14×1,50
Touareg	03-10	65.1	5×120	54	B 14×1,50
Touareg with V6-, V8- or V10-engine	03-10	71.6	5×130	60	B 14×1,50
Touareg	11-18	71.6	5×130	55	B 14×1,50
Touareg	19-20	66.5	5×112	32	B 14×1,50
Touran	03-10	57.1	5×112	47	B 14×1,50
Touran	10-15	57.1	5×112	47	B 14×1,50
Touran	15-16	57.1	5×112	47	B 14×1,50
Up!	12-16	57.1	4×100	38	B 12×1,50
Vento	92-98	57.1	4×100	38	B 14×1,50
Vento VR6	92-98	57.1	5×100	43	B 14×1,50

Car Model	Year	Center Bore	Bolt Pattern	Offset	Stud Size
140	66-74	65.1	5×108	40	N 1/2"
240	74-93	65.1	5×108	25	N 1/2"
300	76-91	52.1	4×100	37	B 12×1,25
400	86-96	52.1	4×100	37	B 12×1,25
700	82-92	65.1	5×108	25	N 12×1,50
850 (4-bolt)	92-94	65.1	4×108	43	B 12×1,75
850 (5-bolt)	94-97	65.1	5×108	43	B 12×1,75
900	90-98	65.1	5×108	25	N 12×1,50
Amazon	56-70	67.1	5×114,3	25	N 1/2"
C30 (15-inch)	06-13	63.4	5×108	46	N 12×1,50
C30 (16-inch)	06-13	63.4	5×108	52,5	N 12×1,50
C70	97-05	65.1	5×108	43	B 12×1,75
C70	06-13	63.4	5×108	45	N 12×1,50
Duett	53-69	67.1	5×114,3	25	N 1/2"
L3314 Laplander	61-70	108	5×139,7	0	M 1/2"
P1800	61-69	67.1	5×114,3	40	N 1/2"
P1800	70-73	65.1	5×108	40	N 1/2"
PV	44-66	67.1	5×114,3	25	N 1/2"
S40	96-04	67.1	4×114,3	44	N 12×1,50
S40	04-12	63.4	5×108	46	N 12×1,50
S60	01-09	65.1	5×108	43	B 14×1,50
S60	11-16	63.4	5×108	50	B 14×1,50
S70	97-00	65.1	5×108	43	B 12×1,75
S80	99-06	65.1	5×108	49	B 14×1,50
S80	07-16	63.4	5×108	52,5	B 14×1,50
S90	96-98	65.1	5×108	43	N 12×1,50
S90	16-17	63.4	5×108	47,5	B 14×1,50
V40	96-04	67.1	4×114,3	44	N 12×1,50
V40	13-16	63.4	5×108	50	N 12×1,50
V50	04-12	63.4	5×108	46	N 12×1,50
V50 16 inch	04-12	63.4	5×108	52,5	N 12×1,50
V60	11-18	63.4	5×108	50	B 14×1,50
V60	19-20	63.4	5×108	45	B 14×1,50
V60 Cross Country	15-	63.4	5×108	50	B 14×1,50
V60 Polestar	14-	63.4	5×108	55	B 14×1,50
V70	97-00	65.1	5×108	43	B 12×1,75
V70	00-07	65.1	5×108	49	B 14×1,50
V70	08-16	63.4	5×108	50	B 14×1,50
V70 AWD, R, R AWD	97-00	65.1	5×108	43	B 12×1,75
V90	96-98	65.1	5×108	43	N 12×1,50
V90	16-17	63.4	5×108	47,5	B 14×1,50
XC60	09-17	63.4	5×108	50	B 14×1,50
XC60 (gen 2)	17-18	63.3	5×108	50,5	B 14×1,50
XC70	98-07	65.1	5×108	43	B 14×1,50
XC70	08-16	63.4	5×108	50	B 14×1,50
XC90	03-14	67.1	5×108	49	B 14×1,50
XC90 (18-19-inch)	15-16	63.4	5×108	42,5	B 14×1,50
XC90 (20+ -inch)	15-16	63.4	5×108	38,5	B 14×1,50

Acura Legend Bolt Pattern, Tire Size, Rim Size, Center Bore, and Offsets

Acura NSX Bolt Pattern, Tire Size, Rim Size, Center Bore, and Offsets

Acura TL Bolt Pattern, Tire Size, Rim Size, Center Bore, and Offsets

Acura SLX Bolt Pattern, Tire Size, Rim Size, Center Bore, and Offsets

Acura RSX Bolt Pattern, Tire Size, Rim Size, Center Bore, and Offsets

Acura RL Bolt Pattern, Tire Size, Rim Size, Center Bore, and Offsets

Acura RLX Bolt Pattern, Tire Size, Rim Size, Center Bore, and Offsets

Acura Integra Type-R Bolt Pattern, Tire Size, Rim Size, Center Bore, and Offsets

Acura ILX Bolt Pattern, Tire Size, Rim Size, Center Bore, and Offsets

Acura EL Bolt Pattern, Tire Size, Rim Size, Center Bore, and Offsets

Acura CSX Bolt Pattern, Tire Size, Rim Size, Center Bore, and Offsets

Acura CL Type-S Tire Size, Bolt Pattern, Rim Size, Center Bore, and Offsets

Acura CL Tire Size, Bolt Pattern, Rim Size, Center Bore, and Offsets

Acura CDX Tire Size, Bolt Pattern, Rim Size, Center Bore, and Offsets

Acura ZDX Tire Size, Bolt Pattern, Rim Size, Center Bore, and Offsets

Acura TLX Tire Size, Bolt Pattern, Rim Size, Center Bore, and Offsets

Acura RDX Tire Size, Bolt Pattern, Rim Size, Center Bore, and Offsets

Acura MDX Tire Size, Bolt Pattern, Rim Size, Center Bore, and Offsets

Acura Integra Type-S Tire Size, Wheel Size, Offset, Center Bore and Bolt Pattern

Acura Integra Tire Size, Bolt Pattern, Rim Size, Center Bore, and Offsets

Acura Legend Bolt Pattern, Tire Size, Rim Size, Center Bore, and Offsets

Acura NSX Bolt Pattern, Tire Size, Rim Size, Center Bore, and Offsets

Acura TL Bolt Pattern, Tire Size, Rim Size, Center Bore, and Offsets

Acura SLX Bolt Pattern, Tire Size, Rim Size, Center Bore, and Offsets

Acura RSX Bolt Pattern, Tire Size, Rim Size, Center Bore, and Offsets

Acura RL Bolt Pattern, Tire Size, Rim Size, Center Bore, and Offsets

ALL CAR BRANDS WHEEL SPECS

Acura Legend Bolt Pattern, Tire Size, Rim Size, Center Bore, and Offsets

Acura NSX Bolt Pattern, Tire Size, Rim Size, Center Bore, and Offsets

Acura TL Bolt Pattern, Tire Size, Rim Size, Center Bore, and Offsets

Acura SLX Bolt Pattern, Tire Size, Rim Size, Center Bore, and Offsets
